Diaphragm Seal Pressure Gauges

Diaphragm pressure gauges protect sensitive measurement components from harsh process media, including corrosive chemicals, slurries, and viscous fluids common in oil and gas operations. They enable accurate pressure readings in environments that would otherwise damage or clog standard gauge internals, extending equipment reliability and reducing maintenance costs.

The diaphragm flexes in response to process pressure, transmitting that force through an incompressible fill fluid to the gauge's Bourdon tube or sensing element. This isolates the media from direct contact with internal gauge parts, ensuring accurate readings while preventing clogging, corrosion, or contamination from the process fluid.

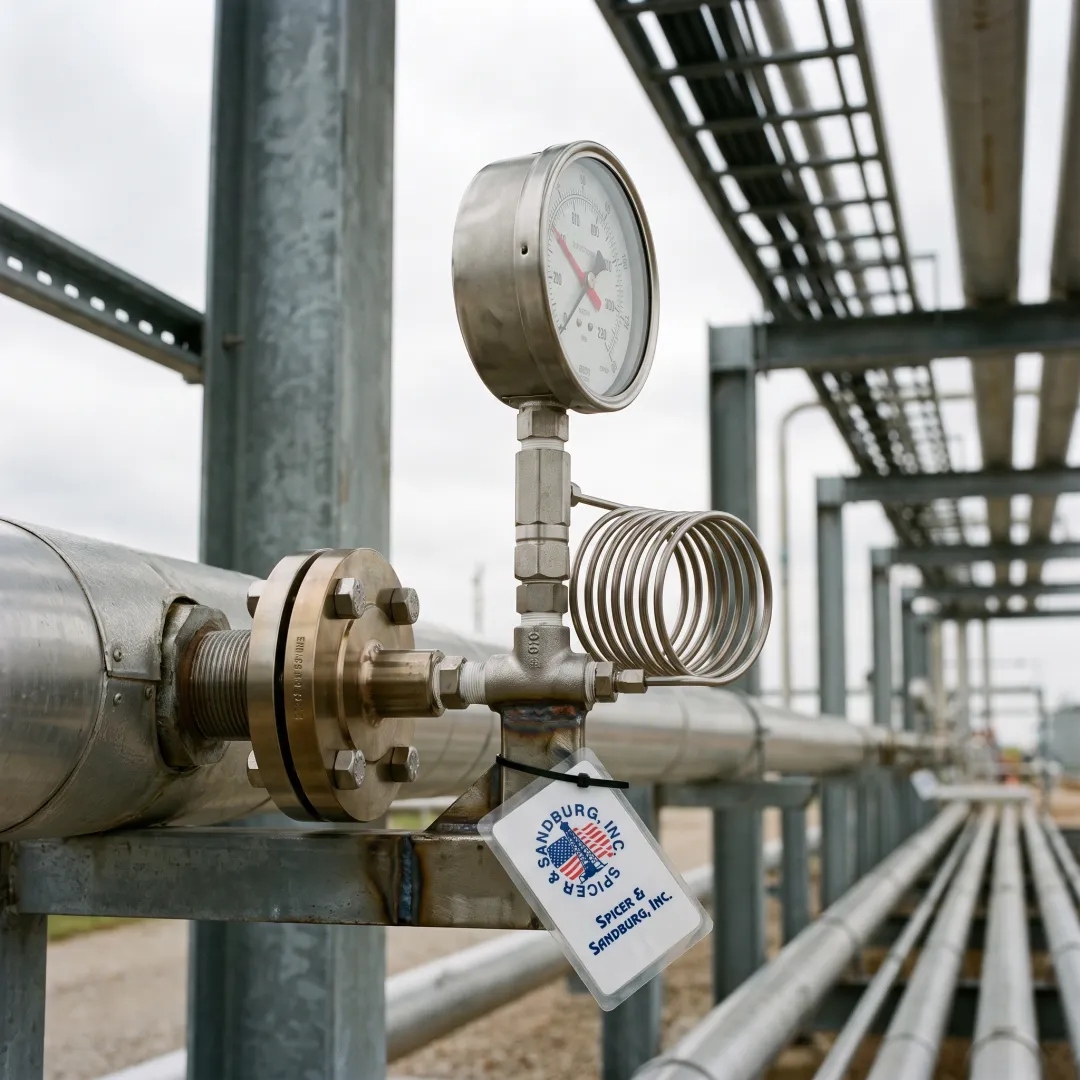

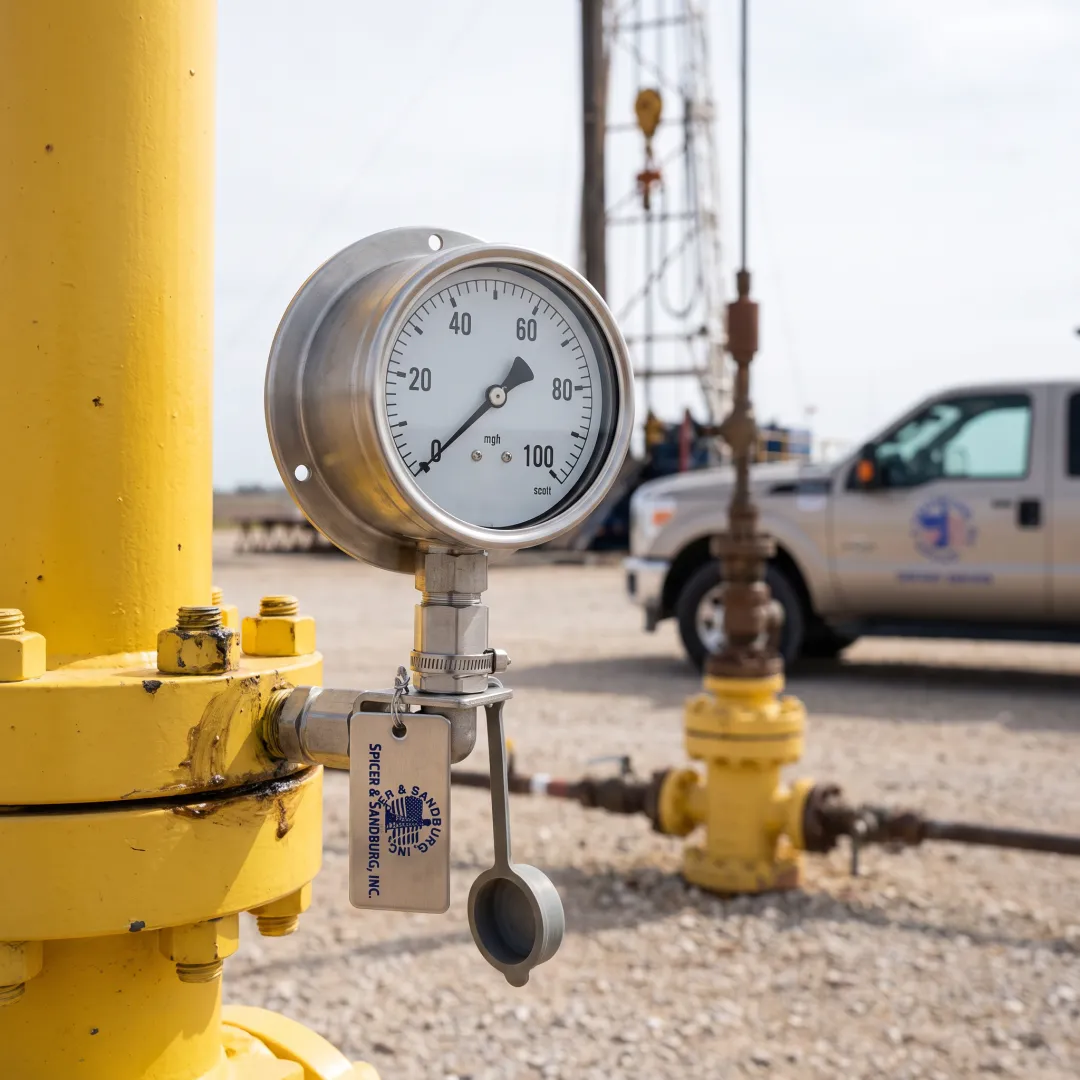

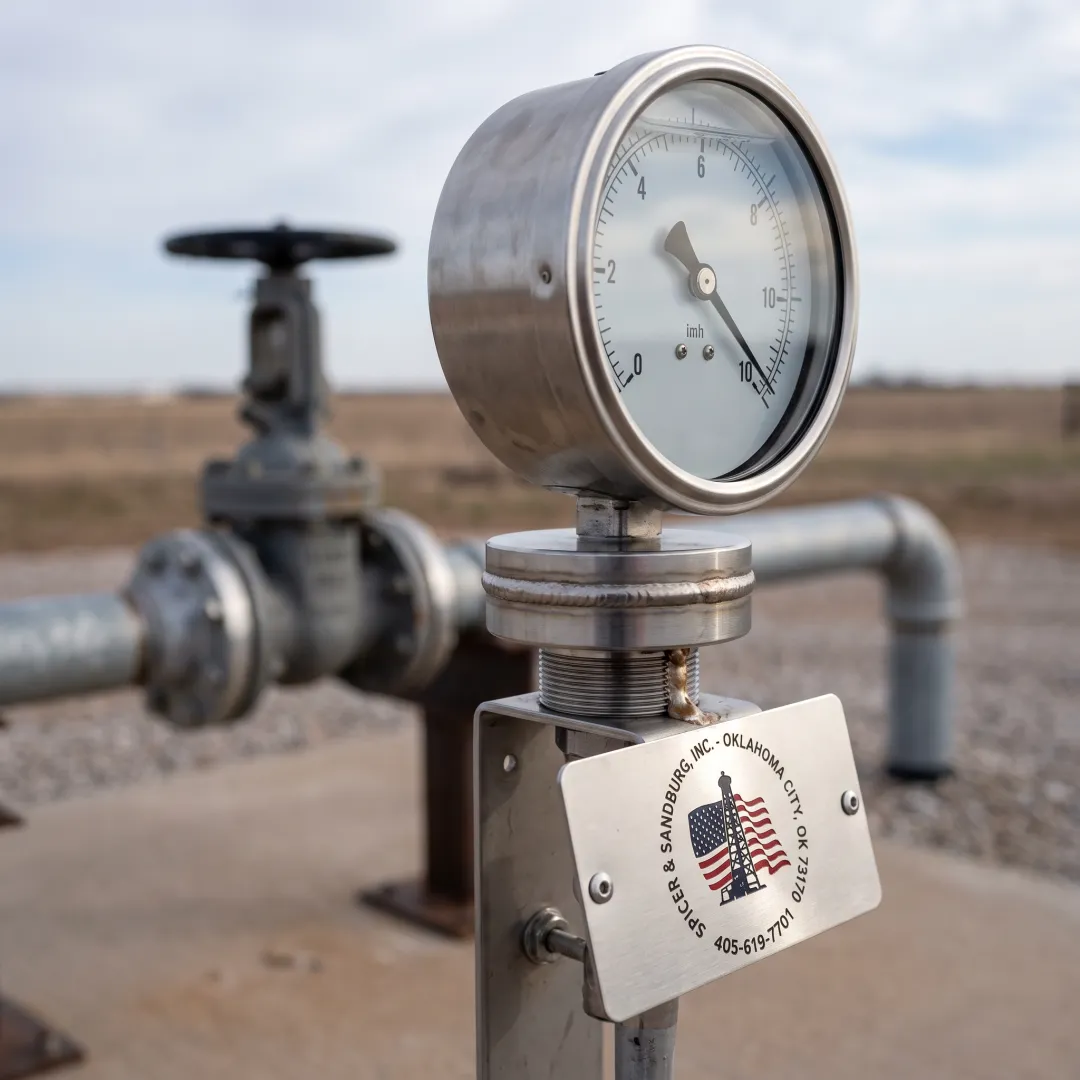

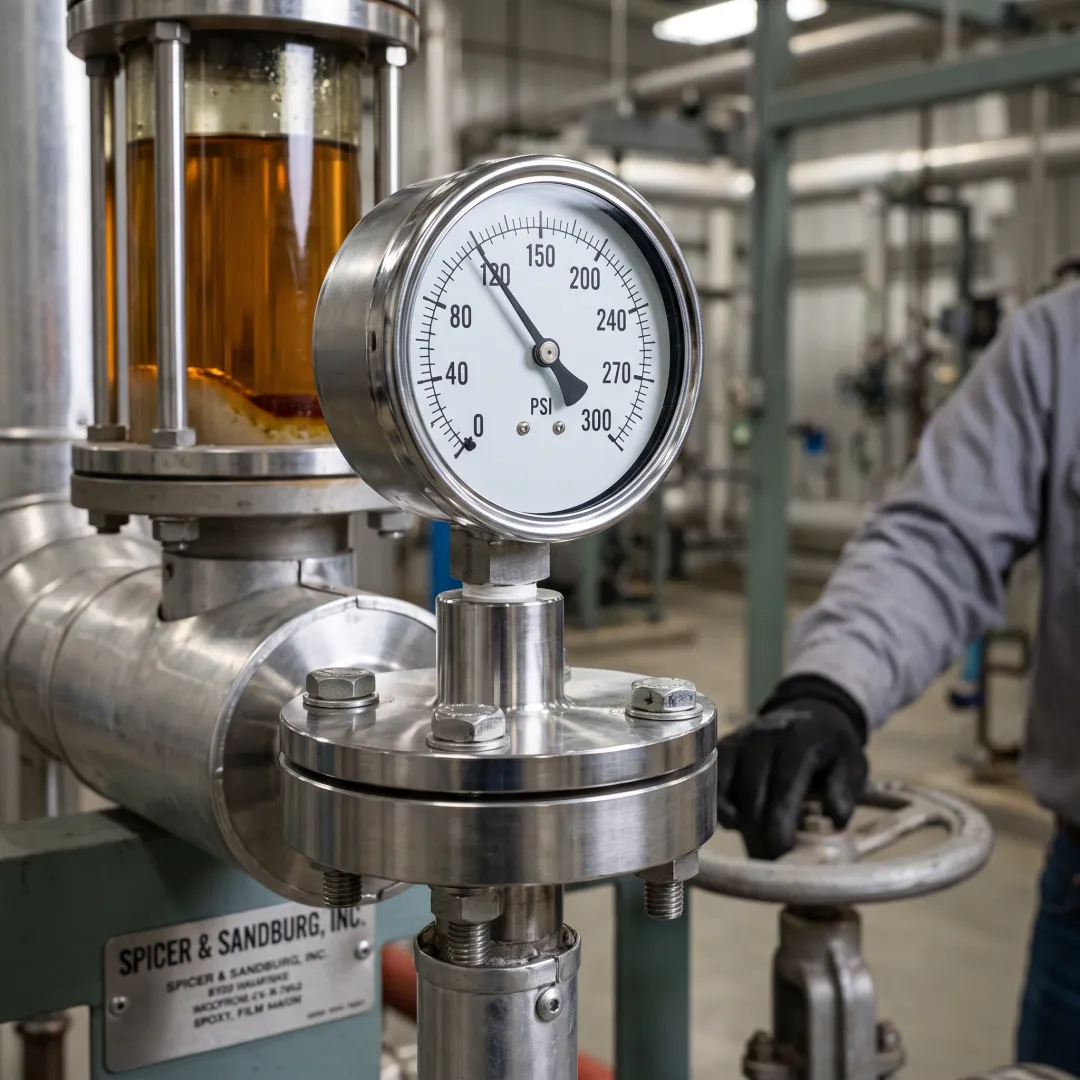

Diaphragm seal pressure gauges are widely used in upstream, midstream, and downstream oil and gas operations, as well as industrial process manufacturing, pipeline monitoring, and refining facilities. They are especially valuable in applications involving corrosive, viscous, or high-temperature media where standard gauges would fail prematurely.

Diaphragm seal pressure gauges are commonly paired with needle valves for isolation and calibration, and thermowells for simultaneous temperature monitoring. These accessories extend instrument life, simplify maintenance, and allow gauges to be safely isolated from the process line without shutting down operations.

Selection depends on the diaphragm's wetted material compatibility with the process media, the fill fluid used, the pressure range required, and the operating temperature. Consulting with a technical specialist ensures the correct seal material, connection type, and gauge configuration for your specific corrosive or viscous application.

Routine maintenance includes periodic calibration checks, visual inspection of the diaphragm and fill fluid for leaks or contamination, and verifying needle valve and thermowell connections remain secure. Because diaphragm seals reduce direct media contact, maintenance intervals are typically longer than standard gauges, but regular checks remain essential.
