Check valves exist to stop this. But not all check valves work the same way, and picking the wrong type for your application is a common (and costly) mistake. Lift check valves and swing check valves look similar on a spec sheet but behave very differently under pressure.
This guide breaks down how lift check valves work, where they outperform swing checks, and what to check before you spec one for your system.
Key Takeaways
- Disc lifts vertically off the seat, then reseats by gravity or reverse flow
- Best fit for high-pressure, clean-fluid service that needs tight shutoff
- Higher pressure drop than swing checks due to a narrower flow path
- Install horizontally, or vertically with upward flow, for reliable performance
- API-certified sources cut failure risk in oil, gas, and industrial systems
What Is a Lift Check Valve?
A lift check valve uses a seat design similar to a globe valve. Instead of a hinged flap, it relies on a disc, piston, or ball guided vertically within the body. That guidance is the whole point: it keeps the sealing element aligned every time it moves.
Core components:
- Body — houses the seat and guides for the moving element
- Disc, piston, or ball — the part that lifts and reseats
- Seat — the surface the disc seals against when closed

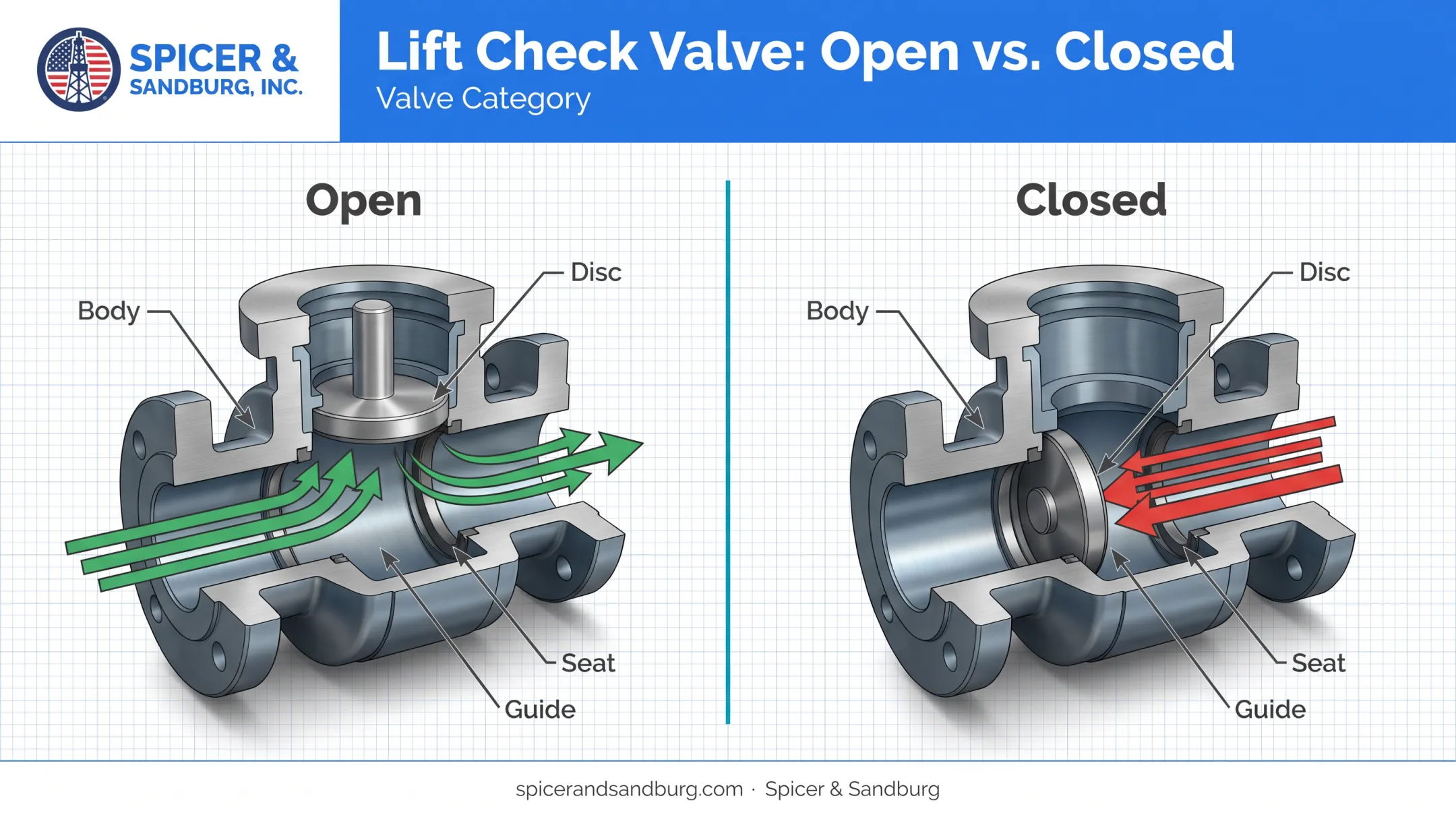

How it opens: Forward flow pressure builds under the disc. Once it overcomes the disc's weight (and any spring resistance), the disc lifts straight up off the seat, opening a path for flow.
How it closes: When pressure drops or flow reverses, gravity pulls the disc back down. Reverse flow adds extra force, driving the disc firmly onto the seat and sealing off backflow.
Common materials include bronze and stainless steel, chosen based on the fluid's corrosion potential. Sour oilfield service often calls for materials qualified under NACE MR0175/ISO 15156, since standard bronze or stainless isn't automatically rated for sour gas exposure.
Check-All, a manufacturer partner in Spicer & Sandburg's network, produces check valves in carbon steel, stainless steel, and brass. Material selection varies by model and application.
One trade-off: the guided, narrow flow path that makes lift checks seal so well is also why they have a higher pressure drop than full-bore designs like swing checks.
Lift Check Valves vs. Swing and Other Check Valves
Swing check valves use a hinged disc that swings open with forward flow, similar to a door. This design generally offers lower pressure drop and more flexible installation orientation. The catch: sealing performance is weaker, and gravity-driven closure can lag behind a sudden flow reversal, contributing to water hammer.
Lift check valves trade some of that flexibility for tighter sealing and better resistance to pressure surges.
Piston check and ball check valves are lift-check variants:
- Piston checks guide a piston within close tolerances, often with a spring option for faster, more controlled closure
- Ball checks use a ball that rotates as it seats, giving a self-wiping action useful for viscous or slightly dirty fluids
- Spring-assisted designs close faster than gravity-only seats and support more installation orientations

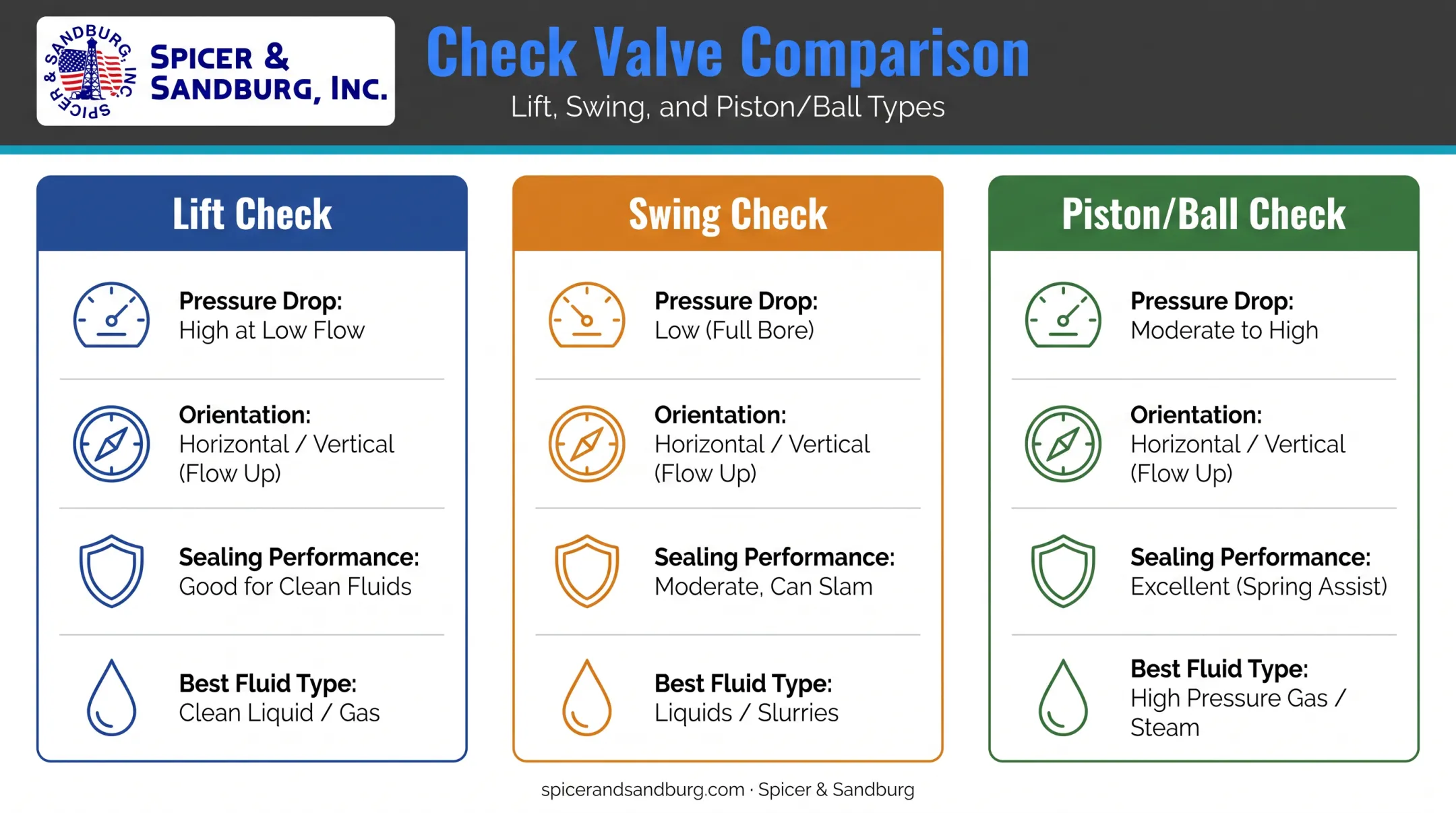

Side-by-side, the main differences look like this:
| Feature | Lift Check | Swing Check | Piston/Ball Check |
|---|---|---|---|
| Pressure drop | Higher | Lower | Model-dependent; spring versions minimize cracking pressure |
| Orientation | Often horizontal-only (some allow vertical upward flow) | Horizontal or vertical upward flow | Horizontal standard; spring option allows vertical upward flow |
| Sealing performance | Strong | Moderate | Strong, with wiping action on ball variants |
| Best fluid type | Clean liquids, steam, gas | General service where tight shutoff is less critical | Viscous fluids (ball); precision closure (piston) |
None of these designs is universally "better." The right choice depends on your fluid, your pressure profile, and how your line is oriented.
Why Choose a Lift Check Valve? Advantages and Limitations
Advantages
- Strong sealing performance under high pressure
- Better resistance to water hammer than gravity-only swing designs
- Durable in demanding, high-cycle operating conditions
- Guided disc travel reduces misalignment over time
Limitations
- Restricted installation orientation compared to swing checks
- Sensitive to debris or suspended solids, which can jam the disc off its seat

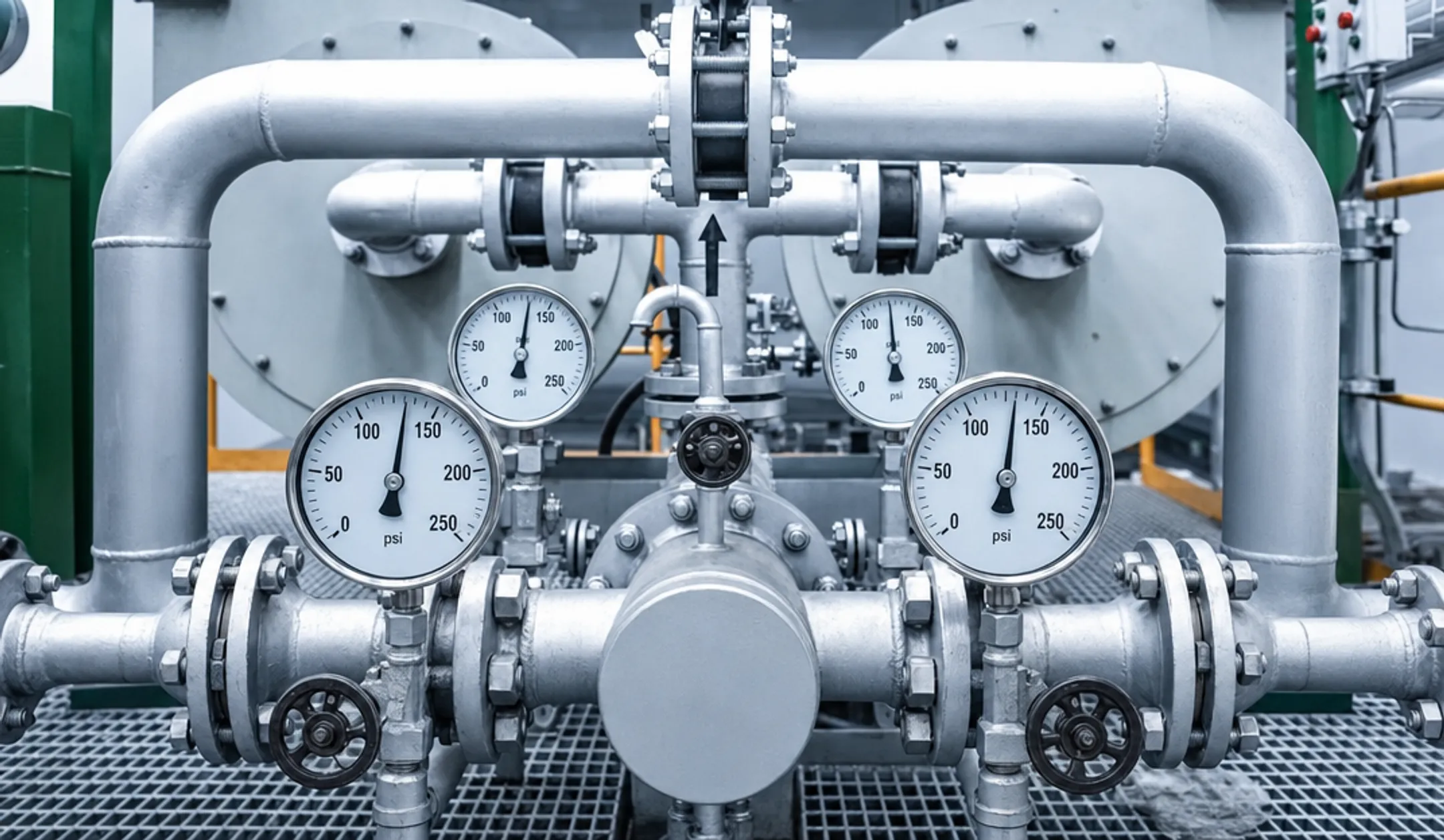

- Slower cycling speed than spring-assisted alternatives That water-hammer resistance matters in the field. Pressure spikes can exceed 10 times normal working pressure—enough to damage pumps, gaskets, expansion joints, and welded pipe joints. Field reports also document an industrial failure in a pulp-and-paper line where a check valve closed at the wrong point in the cycle. Fluid backed up through the piping and damaged both the pipe and downstream equipment. Choose a lift check valve with those failure modes in mind. The right selection keeps a small pressure event from becoming a shutdown.
Key Applications in Oil, Gas, and Industrial Operations
Lift check valves are used wherever clean fluid flows under pressure and backflow would cause real damage:
- Drilling and production pipelines: preventing backflow of oil, gas, or drilling fluids between stages
- Pump discharge lines: protecting pumps from reverse flow when they cycle off
- Boiler and steam systems: where high temperature and pressure demand tight sealing
- High-pressure processing equipment: protecting process lines where reverse flow can damage equipment
- Water supply, HVAC, and fire protection systems: where sealing integrity can't be compromised
Spicer & Sandburg works with a network of manufacturers, including Check-All, whose check valves carry API Monogram certification and meet ANSI/ASME standards. For drilling, completion, and production operations sourcing quality-certified valves, certified manufacturer backing matters more than a low price tag.
Installation and Selection Considerations
Getting the valve right on paper doesn't help if it's installed wrong. Orientation is where most field problems start.
Orientation Requirements
Most lift check valves need horizontal installation, or vertical installation with upward flow only so gravity can assist closure. Installing one backward or in the wrong plane means the disc may never seat properly, defeating the whole purpose of the valve.
Selection Criteria

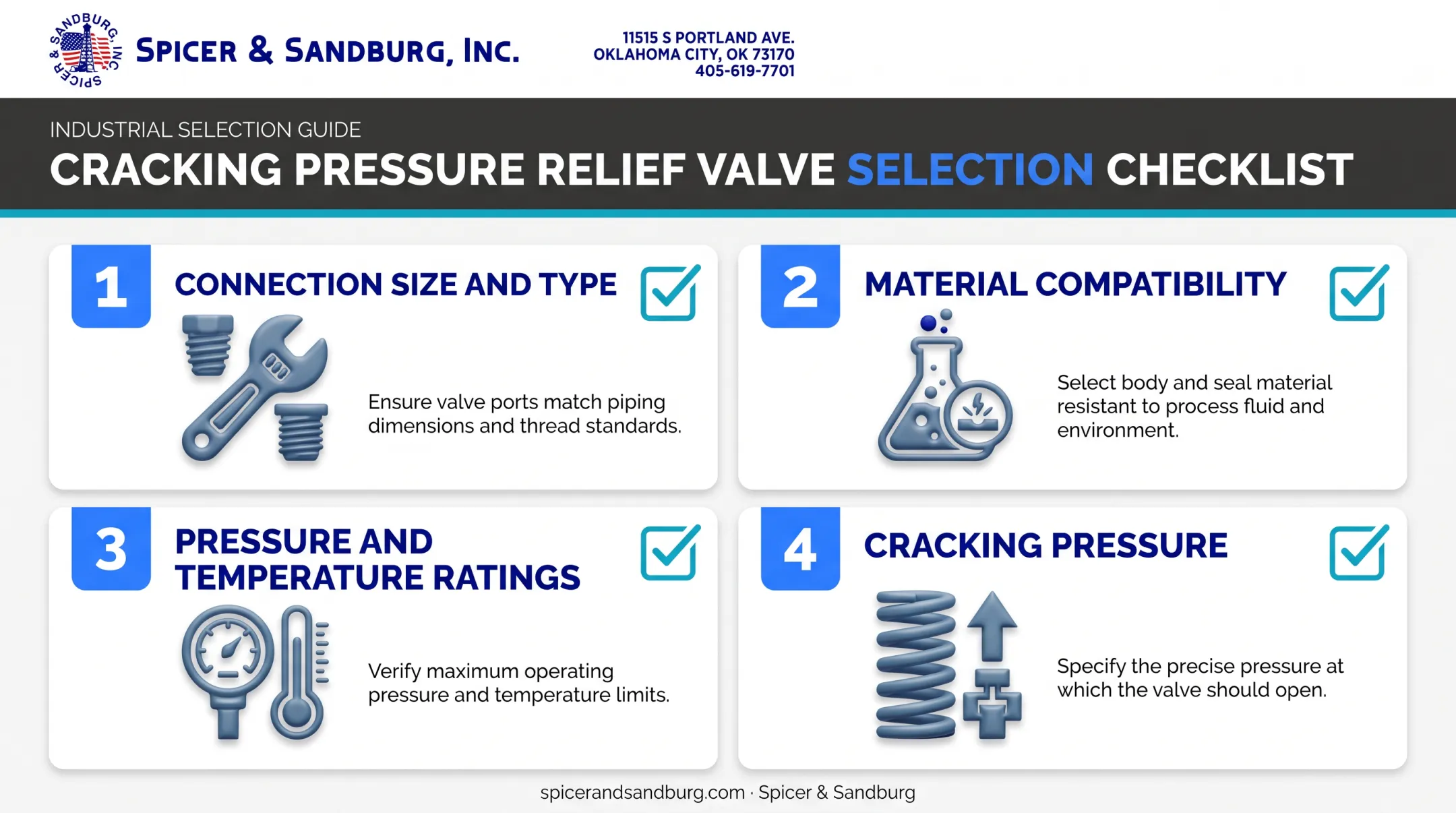

Before specifying a lift check valve, confirm:
- Connection size and type — threaded, flanged, or socket-weld, matched to your line
- Material compatibility — body and seal materials suited to the fluid (sour service needs NACE-qualified materials)
- Pressure and temperature ratings — matched to actual operating conditions, not just line-rated averages
- Cracking pressure — the minimum differential needed to lift the disc off the seat
Fluid cleanliness matters more than people expect. Debris or suspended solids can prevent the disc from seating fully, leading to leakage or premature wear. If your fluid runs dirty, a ball check's wiping action may handle it better than a straight piston design.
Much of this hinges on model-specific data, not generalized rules. You need documented specs and certifications tied to your service conditions.
Spicer & Sandburg's team, reachable at +1 405-619-7701, matches valve specs to your application instead of sending you to a generic catalog page.
Frequently Asked Questions
What is a lift check valve?
A lift check valve uses a vertically guided disc, piston, or ball that lifts off its seat under forward flow pressure. It falls back and seals against the seat when flow slows or reverses.
What are the differences between swing type and lift type check valves?
Swing checks use a hinged disc, offering lower pressure drop and more flexible orientation, but weaker sealing. Lift checks offer tighter sealing and better surge resistance, at the cost of higher pressure drop and orientation restrictions.
What is the purpose of a check valve?
A check valve automatically prevents backflow in a piping system, protecting pumps, equipment, and piping from reverse-flow damage. It requires no manual operation to function.
What are three types of check valves?
Swing check valves use a hinged disc for low-resistance flow. Lift check valves use a vertically guided disc for stronger sealing. Ball check valves use a rotating ball, useful for viscous or slightly dirty fluids.
Where are lift check valves commonly used in oil and gas operations?
They're common in drilling and production pipelines, pump discharge lines, and high-pressure processing equipment where backflow could damage upstream components. Boiler and steam systems also rely on them heavily.
Can lift check valves be installed vertically?
Yes, but only if flow travels upward through the valve. Otherwise, horizontal installation is the standard requirement for proper gravity-assisted closing.
