Results depend on more than the product you pick. Steel age, weathering, post-treatment, existing coating condition, exposure environment, and application method all factor in. A newly galvanized fence post and a ten-year-old weathered pipe rack need completely different prep.
This guide covers when coating galvanized steel makes sense, what to prepare beforehand, a step-by-step process, the variables that make or break adhesion, common failures, and alternatives. Throughout, follow the coating manufacturer's current technical data sheet (TDS) — it overrides any general rule here.
TL;DR
- Classify the surface first, then clean and profile without stripping zinc unnecessarily

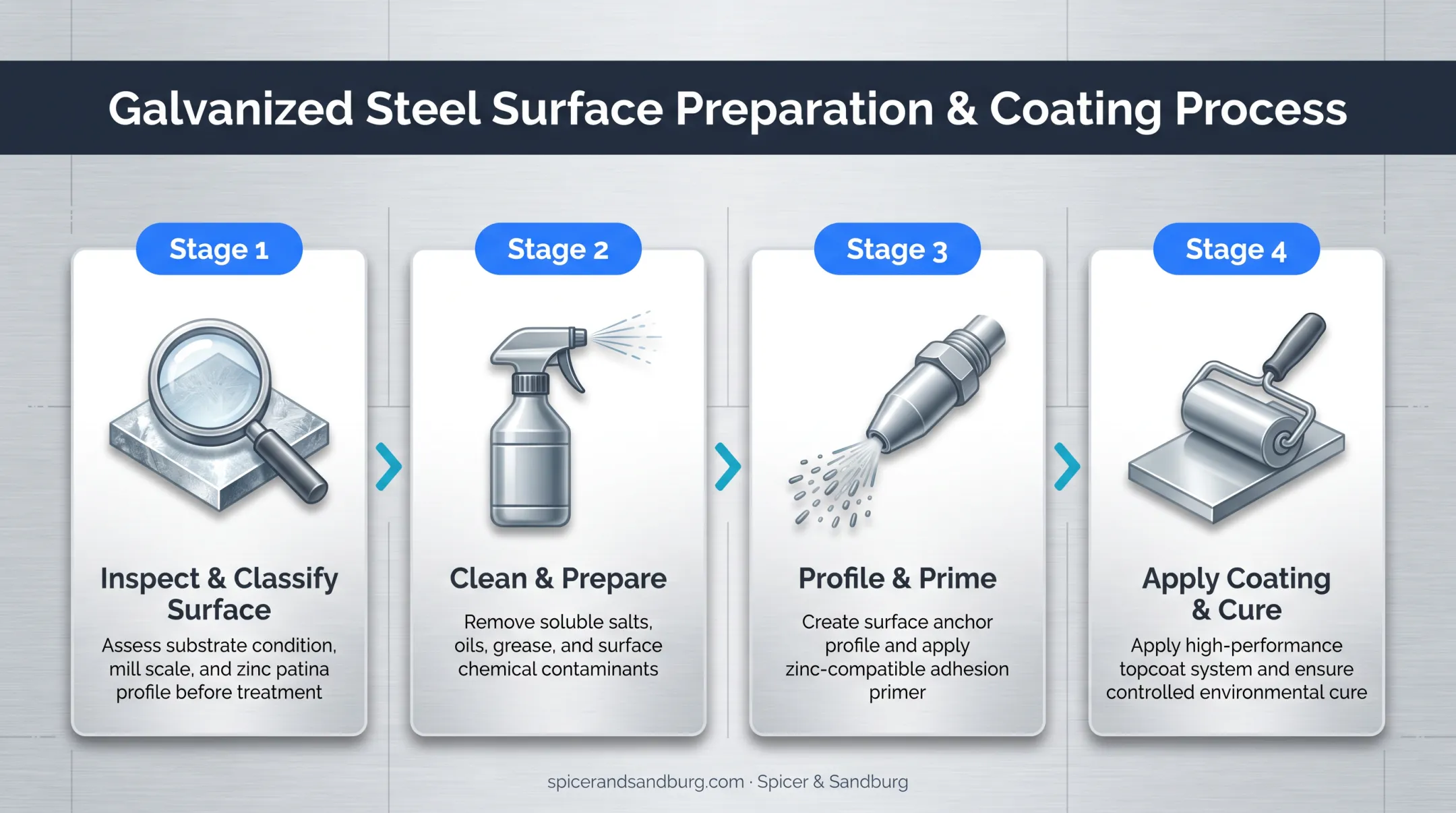

- Workflow: inspect → clean and dry → profile or prep → prime and coat → cure → inspect
- No single "best" paint exists—match the system to exposure, service conditions, and manufacturer compatibility
- Powder coating, zinc-rich primers, or bare galvanizing can outperform paint depending on the project
How to Paint or Coat Galvanized Steel

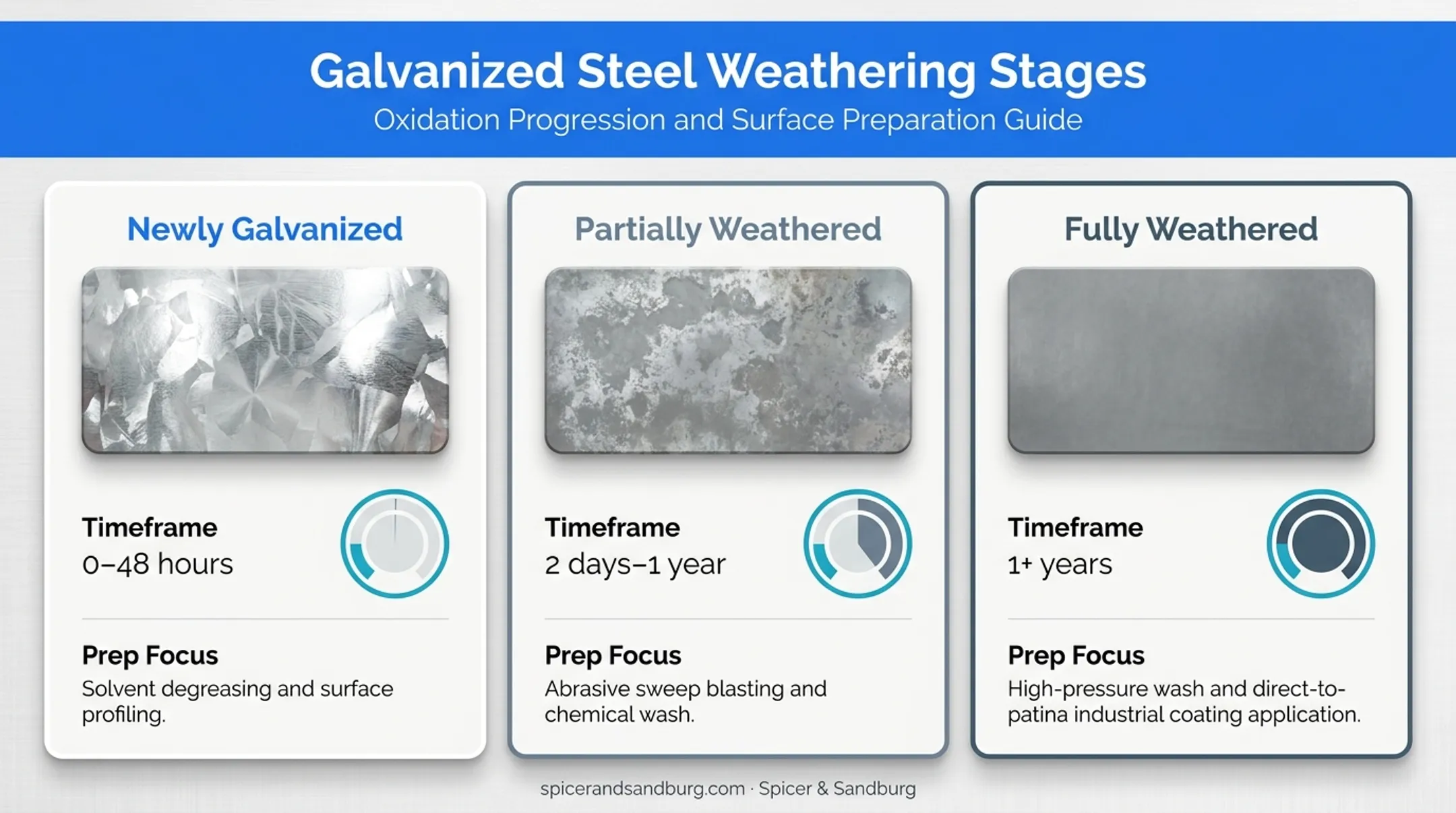

Step 1: Inspect and Classify the Galvanized Surface
Before touching a wire brush, figure out what you're actually dealing with. The American Galvanizers Association (AGA) breaks galvanized surfaces into three categories, each requiring different handling:
| Condition | Timeframe | Prep Focus |
|---|---|---|
| Newly galvanized | Up to 48 hours | Remove high spots, rinse, dry, profile |
| Partially weathered | ~2 days to 1 year | Remove zinc oxide/hydroxide and organics |
| Fully weathered | 1+ years | Mild cleaning only; patina is stable |
Check for sharp zinc protrusions, bare spots, white rust or wet storage stain, existing paint, and corrosion. Then confirm whether the steel received a post-treatment like chromate quenching, passivation, or phosphating. These can defeat wash-primer chemistry entirely. Pull the coating spec, product TDS, and SDS before deciding anything.
Step 2: Clean and Prepare the Surface
Remove oil, grease, dirt, salts, and loose corrosion products. Solvent cleaning per SSPC-SP1 handles most contaminants through wiping, spraying, or a mild alkaline wash (keep power-washing pressure below 1,450 psi). New galvanizing generally needs less aggressive cleaning than weathered surfaces.
- Rinse thoroughly with fresh water where required
- Let the surface dry completely before moving on
- Leave a stable, contaminant-free surface without stripping the zinc
Skipping the rinse step is one of the most common causes of early adhesion failure.
Step 3: Create the Required Profile and Apply Primer
This step determines whether your coating survives year one. Options include controlled sweep blasting, a compatible chemical wash primer, or a specified chemical treatment.
For sweep blasting, AGA recommends:
- 30-60 degree nozzle angle
- 200-500 micrometer abrasive
- Mohs hardness no greater than 5
Overblasting removes protective zinc and defeats the whole purpose of galvanizing.
Wash primer (T-wash) is a common alternative. It conditions oxides and hydroxides and etches bare zinc, but it won't work over zinc-phosphate post-treatment. Typical application runs 0.3-0.5 mil DFT by air spray, with a topcoat window of just 0.5 to 4 hours. Reserve brush and roller for touch-up only.
Apply any specified primer promptly, following mixing ratios, thickness, recoat window, ventilation, and environmental limits exactly as written on the TDS.
Step 4: Apply the Coating, Cure, and Inspect
Apply the approved topcoat in the specified number of coats and thickness. Match your application method (brush, roller, spray, or shop process) to the project scale and access constraints.
Keep temperature, humidity, and surface conditions within the manufacturer's stated limits during application. Once applied, cure each coat per the manufacturer's time and temperature requirements.
Before returning the asset to service, inspect for:
- Full coverage and correct dry film thickness
- Adhesion (pull-off testing per ASTM D4541 for critical assets)
- Pinholes, blistering, or holidays
- Exposed steel or missed areas
When Should You Paint or Coat Galvanized Steel?
Decision Criteria
Coating galvanized steel is worth it when you need more than corrosion protection alone. Common drivers include:
- Color coding or branding
- Visibility or safety marking
- Extra barrier protection in aggressive service
- Matching adjacent materials
Tie the decision to the asset’s exposure environment and long-term maintenance plan.
It's often unnecessary or even risky when:
- Galvanizing alone already meets the corrosion protection requirement
- Service conditions are severe or highly specialized, warranting a purpose-built system
- New steel can be specified with a zinc-rich primer over bare steel instead
For industrial pipes, valves, fittings, and related equipment, sourcing a compatible primer and topcoat system gets complicated fast. Post-treatments, exposure conditions, and manufacturer compatibility all need to line up. Spicer & Sandburg represents Tnemec’s protective coating line alongside pipe, valve, and fitting suppliers, which helps teams coordinate compatible products for coated components.
Once you decide coating is justified, lock down prep and documentation before the crew mobilizes.
What You Need Before Starting
Stage equipment and documentation before the crew arrives:
- Cleaning tools and, where specified, controlled profiling equipment
- Application equipment matched to the coating type
- Ventilation, access equipment, and inspection tools
- Appropriate PPE for solvents, abrasives, and spray application
Confirm substrate condition, coating compatibility, SDS/TDS documentation, environmental limits, cure times, and repair procedures. Check for any owner, engineering, ASTM, SSPC, or AMPP requirements tied to the project spec.
Key Parameters That Affect Results
Surface Age and Weathering
Newly galvanized, partially weathered, and fully weathered zinc carry different films and contaminants. Misclassifying the surface leads to poor adhesion, premature peeling, or unnecessary zinc removal. Match preparation guidance to the surface's actual condition.
Post-Treatments and Contaminants
Chromate quenching, passivation, phosphating residues, oils, and storage contamination can all interfere with adhesion. Verify what post-treatment (if any) was used and confirm removal requirements before specifying a primer.
Cleaning and Surface Profiling
Cleaning removes contaminants; profiling improves mechanical or chemical adhesion. But excessive sanding, blasting, or aggressive chemical treatment strips away corrosion protection you're trying to preserve. When guidance conflicts, defer to the selected coating system's TDS and the relevant SSPC standard—not a generic rule of thumb.

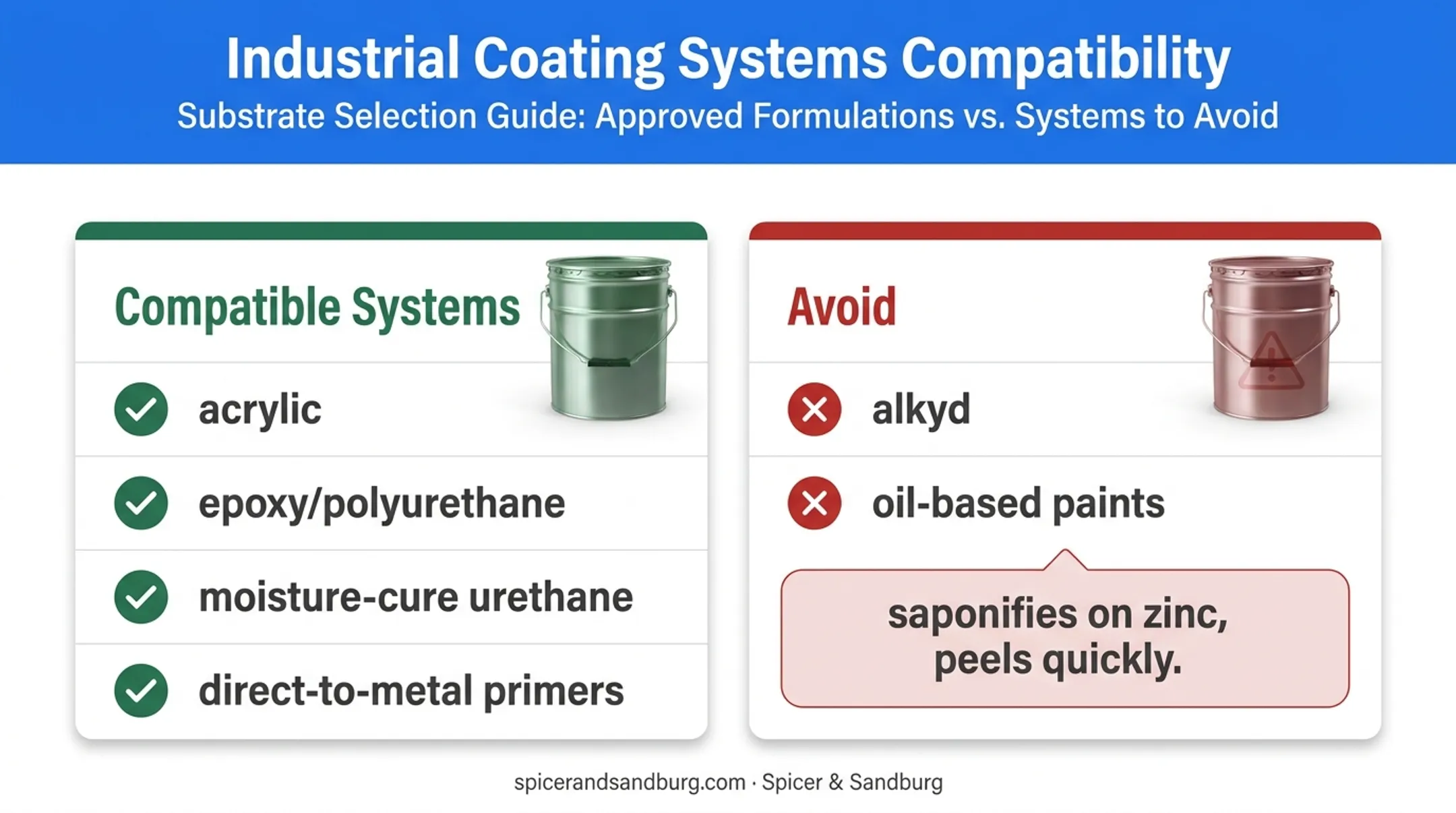

Coating and Primer Compatibility
Several coating families work over properly prepared galvanizing:
- Acrylic systems (where the TDS names galvanized steel explicitly)
- Epoxy/polyurethane barrier and finish systems
- Moisture-cure urethanes
- Direct-to-metal and galvanized-compatible primers
Choice depends on exposure, TDS limits, and system design—not a single "best" chemistry. Some products react badly with zinc corrosion products:
- Avoid alkyd and oil-based paints — they can saponify on zinc and form a soapy film that peels quickly
- Confirm compatibility with the manufacturer before specifying any primer or topcoat
Application Environment, Curing, and Inspection
Temperature, humidity, condensation, ventilation, film thickness, and recoat timing all affect final performance. Build quality checks into sign-off for:
- Coverage and adhesion
- Pinholes and blistering
- Dry film thickness
- Handling damage
Common Mistakes, Troubleshooting, and Alternatives
Common Mistakes
- Skipping inspection or cleaning steps to save time
- Failing to rinse residues or letting the surface dry incompletely
- Overprofiling and removing protective zinc
- Using unsuitable oil-based or alkyd products on zinc
- Applying outside the manufacturer's stated environmental limits
- Ignoring recoat windows and cure requirements

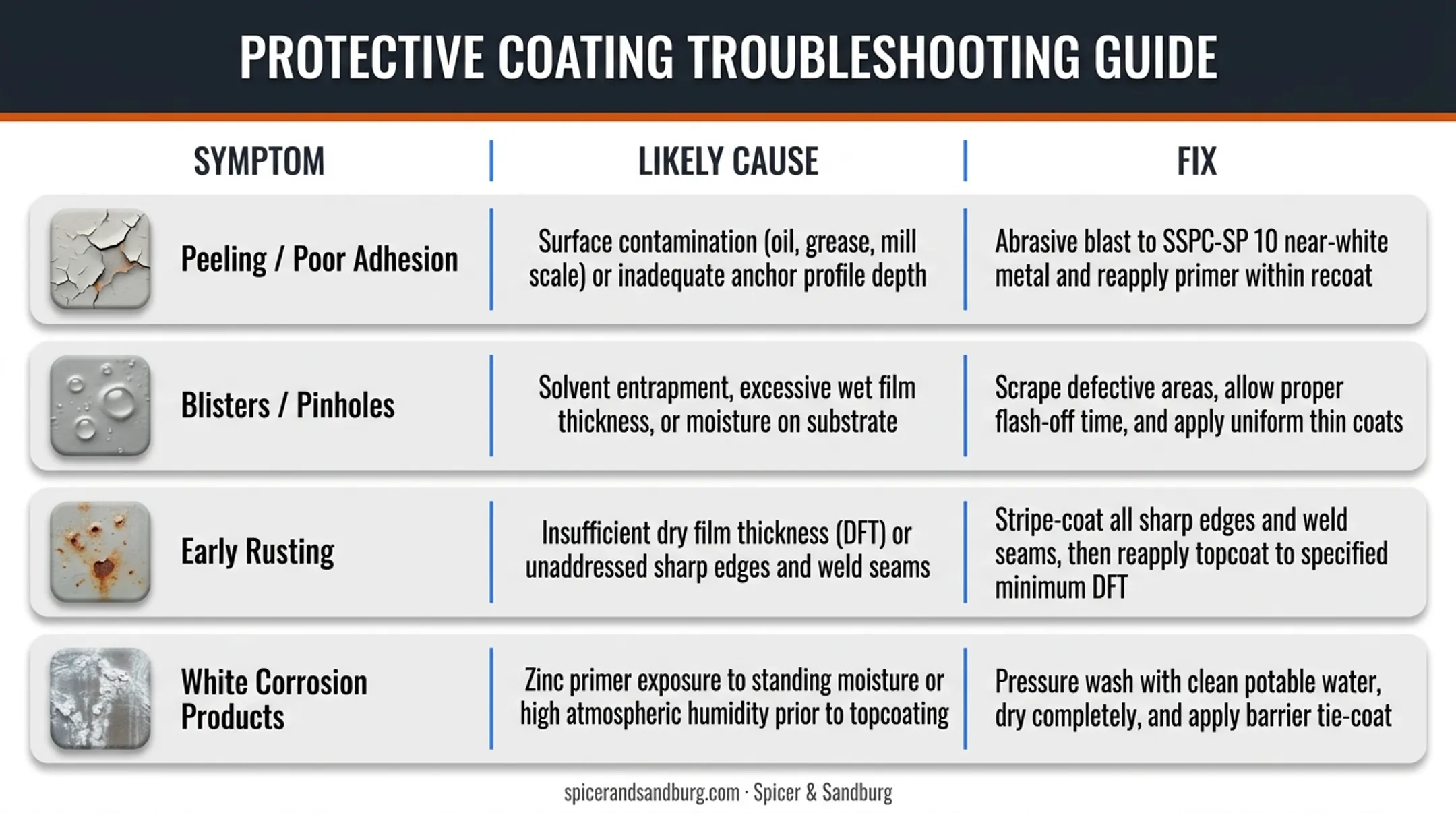

Troubleshooting Guide
| Symptom | Likely Cause | Fix |
|---|---|---|
| Peeling/poor adhesion | Contamination, no profile, incompatible primer | Strip failed coating, re-clean, re-profile, confirm compatibility |
| Blisters/pinholes | Trapped moisture, outgassing during cure | Pre-bake for powder, clean thoroughly, apply promptly |
| Early rusting | Zinc removed during overblasting | Assess remaining zinc thickness, repair with zinc-rich primer |
| White corrosion products | Trapped moisture, poor airflow (wet storage stain) | Remove loose deposits, rinse, dry, treat as required |
Alternatives to Painting
Painting isn't always the answer:
- Leave it exposed. Fully weathered galvanizing often provides adequate standalone protection.
- Zinc-rich primer on bare steel. For new construction, specifying this from the start avoids compatibility headaches entirely.
- Powder coating. Delivers a durable, factory-style finish over prepared galvanizing, but requires thermal pretreatment to prevent outgassing.
- Recoat existing systems. Often the most cost-effective route when the current coating is mostly sound.
Each trades off differently on appearance, durability, repairability, and lifecycle cost — match the choice to the project type, not a default habit.
Conclusion
Painting or coating galvanized steel pays off when the substrate is correctly evaluated and the coating system is genuinely compatible. Most failures trace back to the same root causes:
- Inadequate surface preparation
- Incorrect profiling
- Mismatched coating chemistry
- Uncontrolled application and curing conditions
Balance corrosion protection, appearance, maintenance needs, safety, and project requirements before finalizing a system. For demanding industrial applications, loop in the coating manufacturer or a qualified industrial supplier early in the process. Spicer & Sandburg supplies protective coatings for industrial and oilfield use and can help teams match compatible systems to galvanized steel.
Frequently Asked Questions
What is the best coating for galvanized steel?
It depends on exposure, surface age, preparation quality, and service conditions. Acrylic, epoxy, polyurethane, and moisture-cure systems can all work. Choose the system the manufacturer approves for your specific surface condition.
What is the best paint to use on galvanized metal?
Galvanized-compatible primers paired with an approved acrylic or direct-to-metal topcoat are common choices. Always check the product's technical data sheet before committing to a system.
Can I powder coat over galvanized steel?
Yes, with specialized preparation and thermal pretreatment to prevent outgassing during cure. Handling damage and touch-up requirements also need planning ahead of time.
Can you recoat galvanized steel?
Yes. Assess the existing coating, remove loose material and contaminants, and repair any exposed steel or corrosion. Confirm new-product compatibility, then prepare the surface before applying the new system.
How do you prepare galvanized steel for painting?
Inspect and classify the surface, clean off contaminants, then rinse and dry completely. Apply the specified profiling or chemical treatment before priming with a compatible product.
Do you need primer for galvanized steel?
Some systems allow direct-to-metal application, but a galvanized-compatible primer is commonly specified to support adhesion and overall system performance.
