Low Cracking Pressure Check Valve

A low cracking pressure check valve is built to open with only a small pressure differential across it. That makes it a natural fit for metering circuits, instrumentation lines, pump suction arrangements, and other systems where available differential pressure is thin to begin with.

But "low" cuts both ways. Set the cracking pressure too high, and you restrict flow or trigger chatter. Set it too low, and you might sacrifice resealing performance or bubble-tight shutoff. This guide covers how these valves operate, how cracking pressure is calculated and verified, how to select the right valve, and how to troubleshoot problems when they show up.

Key Takeaways

• Cracking pressure is the differential at first detectable forward flow—not full opening
• Low cracking pressure cuts flow resistance but does not guarantee low drop or tight reseal
• Spring force, orientation, fluid, contamination, and wear still shape real-world performance
• Verify manufacturer ratings and flow curves; there is no universal cracking-pressure standard

What Is a Low Cracking Pressure Check Valve?

What Cracking Pressure Means

A check valve is an automatic one-way flow-control device. Cracking pressure is the minimum inlet-to-outlet differential needed to produce the first detectable forward flow. Swagelok's own technical guidance is direct on this point: cracking pressure is not necessarily the pressure at which the valve is fully open.

That distinction matters more than most spec sheets suggest. Cracking pressure is separate from:

• Inlet pressure — the absolute pressure feeding the valve
• Operating pressure — the pressure range the valve is rated to handle continuously
• Pressure drop — the loss created as fluid moves through the valve's internal geometry

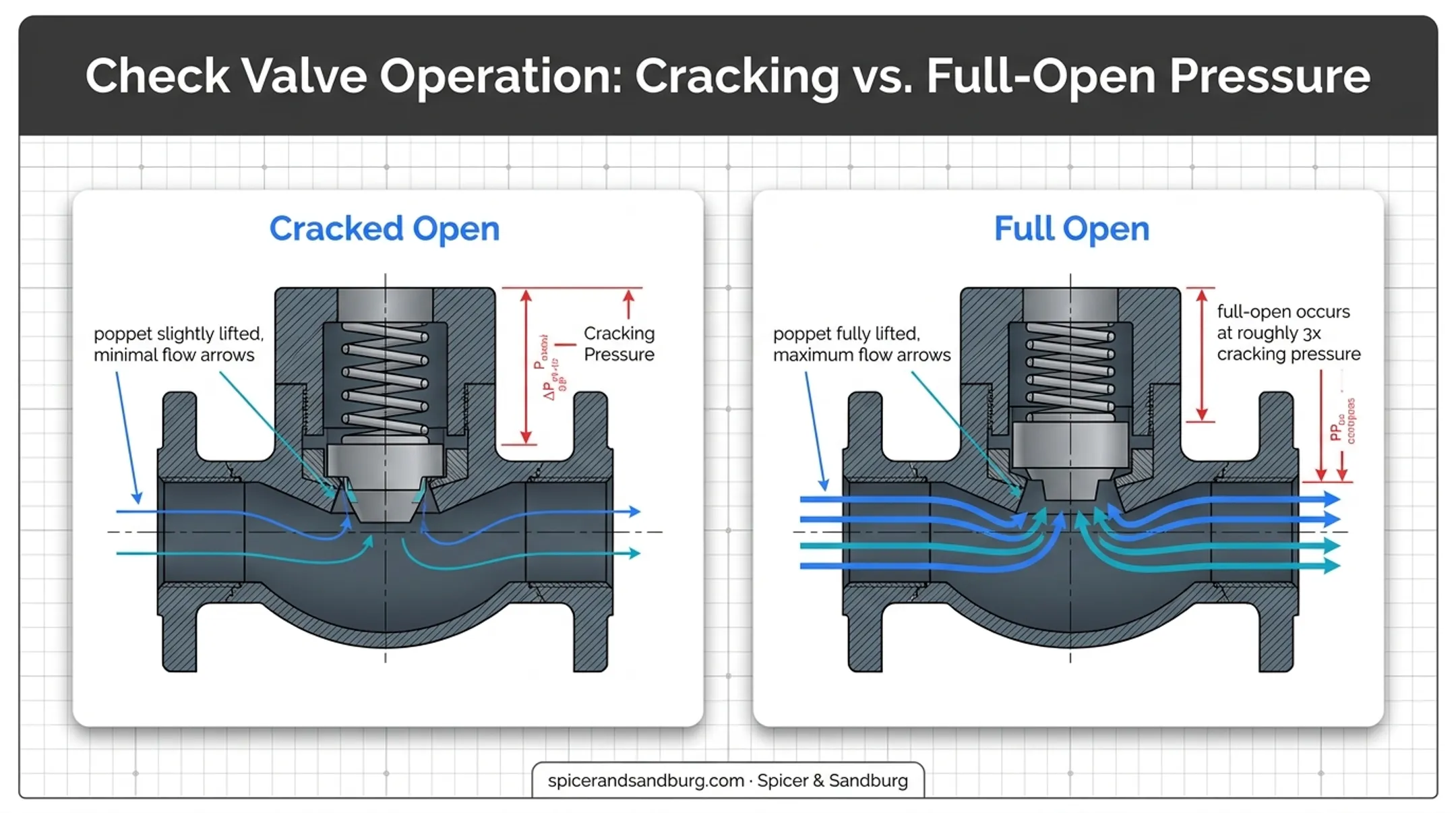

• Full-open pressure — the differential required to fully lift the poppet or disc

Check-All Valve's sizing guidance illustrates why full-open pressure matters separately. For accurate sizing, the valve should reach full-open when pressure drop hits roughly 3 times the spring cracking pressure (5 times for its 3S series).

A valve that's only cracked, not fully open, may still be restricting flow more than expected.

Low Cracking Pressure vs. Standard Check Valve Operation

There's no universal number that defines "low." It's manufacturer- and product-specific. For reference, published catalog ranges vary widely:

• Circle Seal's 100 Series lists a maximum cracking pressure around 4 inches of water column
• Circle Seal's 200/H200 series spans roughly 0.1 to 25 psig
• Parker's RHD/V/Z poppet valves offer standard settings around 1 bar, with optional settings from 0.2 to 6 bar

Design type drives these differences. Spring-loaded poppet, springless, diaphragm, ball, and piston designs each generate different opening forces.

Springless and diaphragm-style valves (including duckbill constructions) can offer very low opening resistance. They depend more on flow direction and gravity than a calibrated spring does.

Always check the manufacturer's datasheet for the specific model you're evaluating rather than assuming a category-wide number.

Cracking Pressure and Resealing

One trade-off often catches people off guard: a valve that opens easily doesn't automatically close tight. Swagelok notes that resealing — the point where flow indication stops entirely — typically requires adequate back pressure. A very light spring may not generate enough closing force for bubble-tight shutoff on its own.

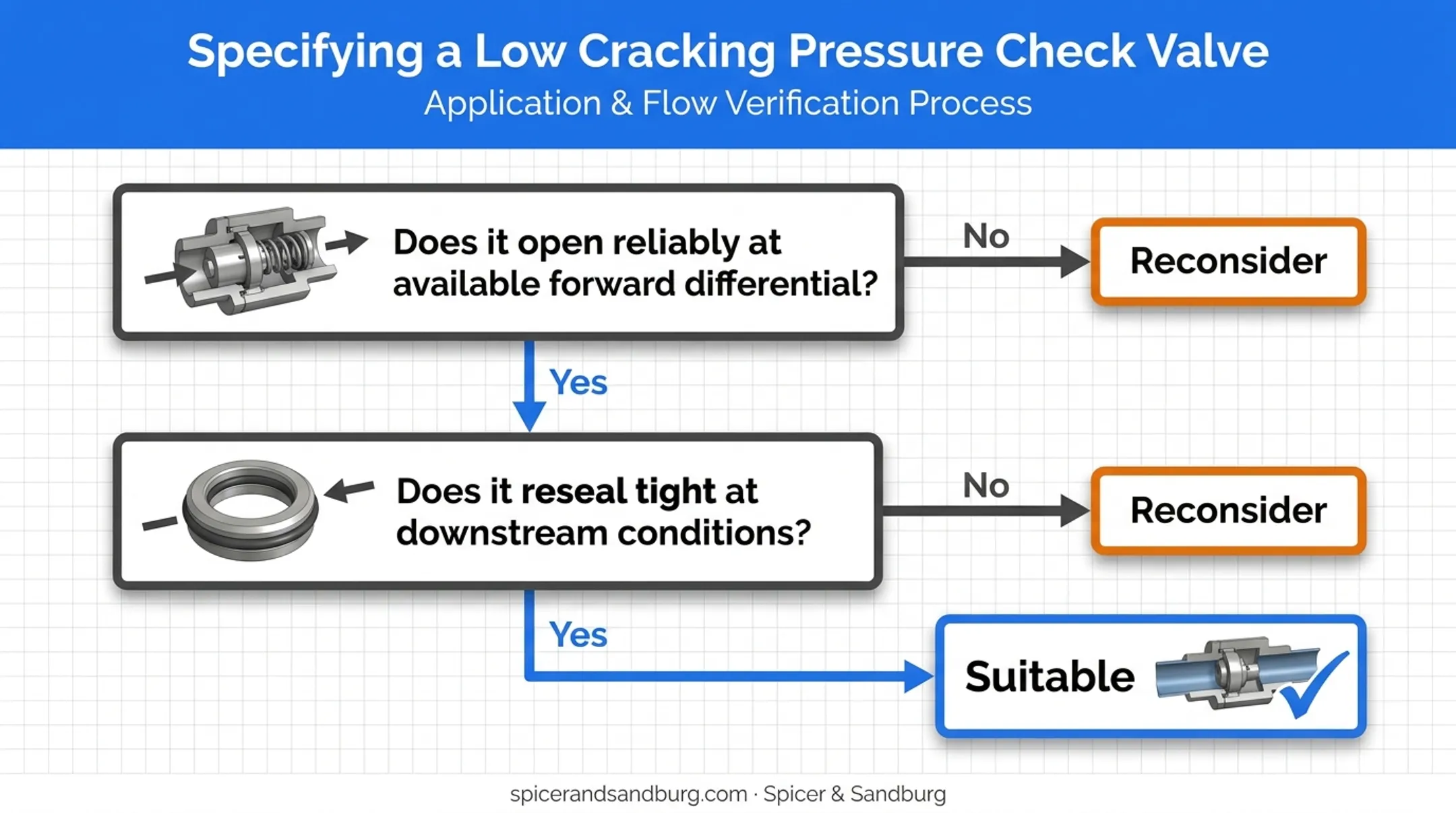

So two separate questions need answers before you specify anything:

1. Does the valve open reliably at your available forward differential?
2. Does it reseal well enough to control reverse flow and leakage at your actual downstream conditions?

How Cracking Pressure Works, Is Calculated, and Is Verified

The Pressure-Differential Calculation

The basic relationship is simple: ΔP = inlet pressure − outlet pressure. What's available across the valve is what matters, not the absolute pressure at either port.

Getting this number right requires accounting for more than a single snapshot:

• Minimum upstream pressure, including startup conditions
• Downstream pressure and any backpressure variability
• Static fluid head in vertical runs
• Pump or compressor pressure fluctuations
• The specific low-flow conditions where cracking pressure matters most

Estimating the Opening Force

The valve opens when pressure force on the moving element overcomes spring preload, gravity, friction, seal resistance, and fluid-column effects. Use that force-balance view for intuition only — always defer to the manufacturer's rated cracking pressure, published tolerance (often around ±20%), and pressure-temperature data.

One failure mode: The Lee Company notes that if inlet pressure exceeds cracking pressure but flow is too low to sustain the required differential, the valve can crack open, close again, and repeat the cycle. That chatter mechanism is a real operating issue, not just a sizing coincidence.

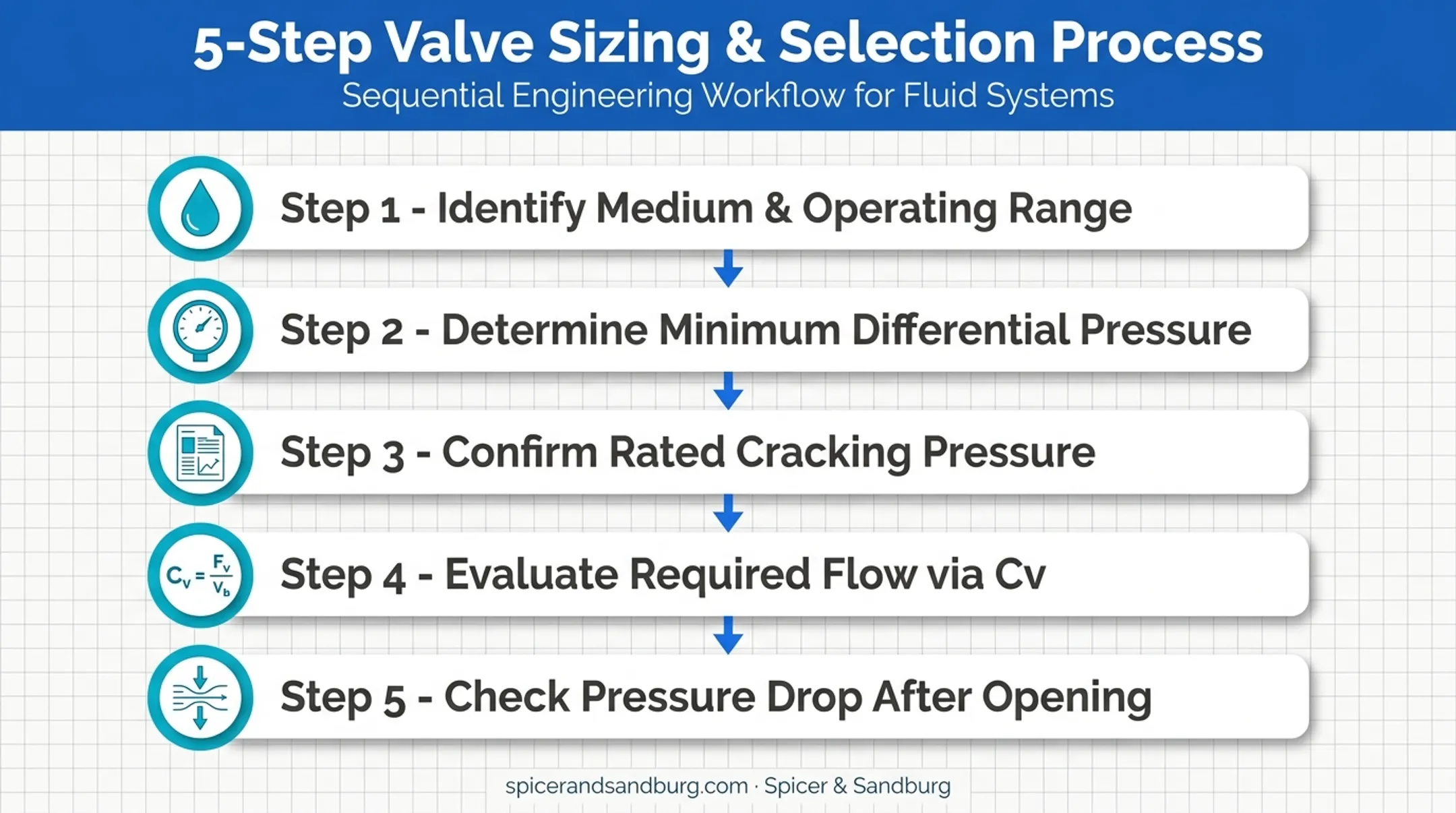

A Practical Calculation and Verification Workflow

1. Identify the medium and operating range — liquid or gas, temperature, viscosity, expected contamination
2. Determine minimum available differential pressure, including startup and low-flow scenarios
3. Confirm the valve's rated cracking pressure against the manufacturer's current datasheet, not a generic table
4. Evaluate required flow using Cv data — for liquids, Check-All's formula is V = Cv √(dP/G), where G is specific gravity
5. Check expected pressure drop after opening, comparing it against your allowable system loss

For verification:

• Measure pressure on both sides of the valve
• Increase pressure gradually and record the first-flow indication
• Document orientation, temperature, test medium, and flow rate
• Follow isolation and depressurization procedures; reserve hazardous-media testing for qualified personnel

API Std 598 and MSS SP-61 cover shell, seat-closure, and pressure testing. Neither defines a cracking-pressure test method, so compliance with those standards is not proof of cracking-pressure performance.

How to Select a Low Cracking Pressure Check Valve

Start With System Pressure and Flow Requirements

Document these before opening a catalog:

• Minimum, normal, and maximum inlet pressure
• Downstream pressure and startup conditions
• Minimum and maximum required flow
• Allowable pressure loss across the valve
• Required reverse-flow control or shutoff performance

Size to actual flow behavior using manufacturer Cv data or flow curves. Do not size to whatever diameter matches your existing pipe or tubing.

Match the Valve to the Service Medium

Liquid, gas, water, pneumatic, hydraulic, chemical, and hydrocarbon services each carry different risks:

• Viscosity and density affect actual cracking behavior versus the rated value
• Particulates can jam a lightly sprung poppet or damage a seat
• Corrosiveness and temperature narrow material options quickly

Review wetted materials, seals, springs, and body materials against your temperature and pressure limits before specifying anything. For sour service, ANSI/NACE MR0175/ISO 15156 governs material selection and qualification in H2S-containing environments.

Evaluate Design and Installation Orientation

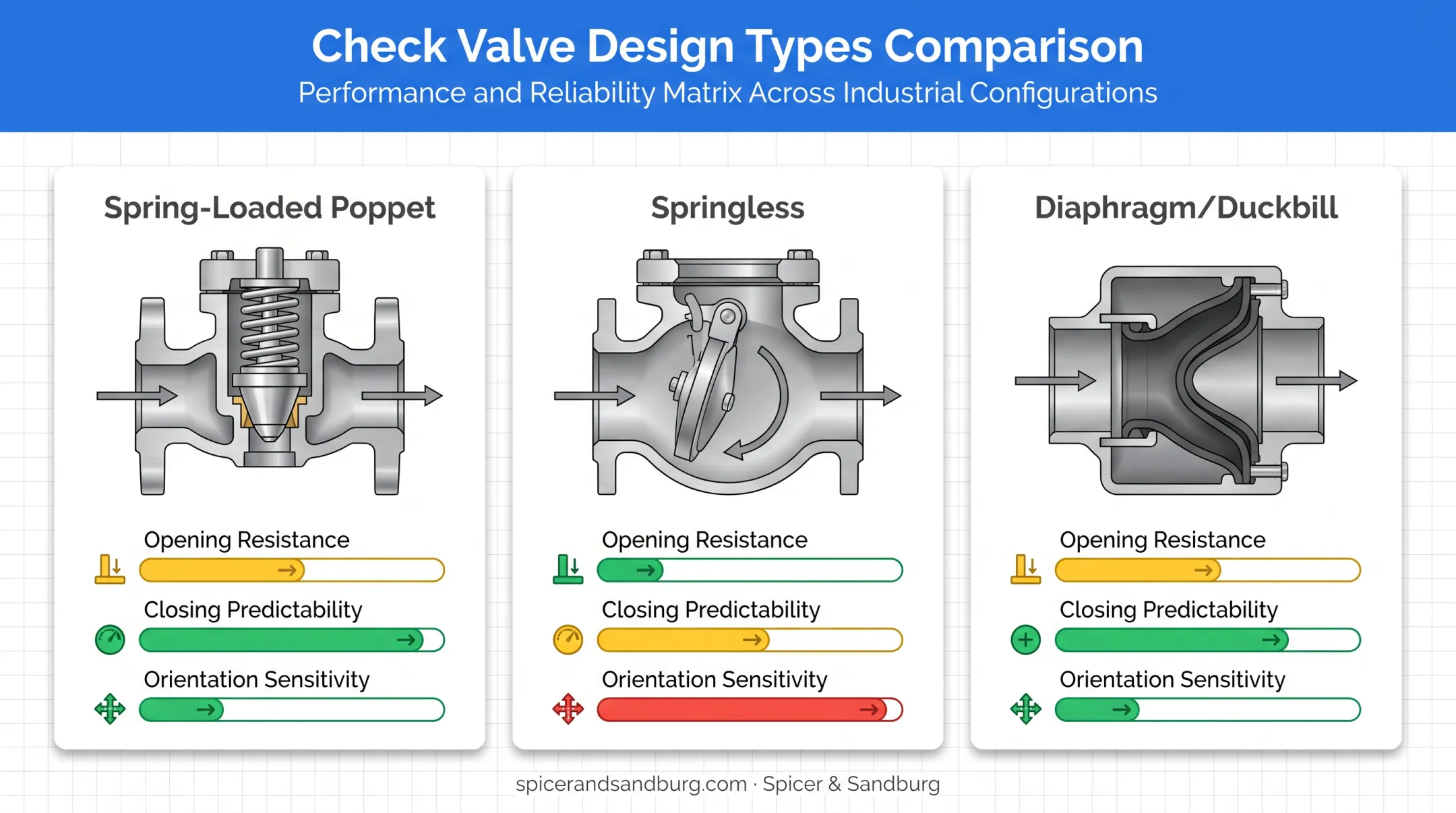

Design Type	Opening Resistance	Closing Predictability	Orientation Sensitivity
Spring-loaded poppet	Adjustable, calibrated	High	Lower
Springless	Very low	Depends on backpressure	Higher
Diaphragm/duckbill	Low	Moderate	Moderate

Vertical-down installations, in particular, can change the effective opening force because the spring has to support both trim weight and any retained liquid column. Always verify the manufacturer's permitted orientation before installing. Don't assume "any position" without checking the datasheet.

Confirm Documentation and Sourcing Requirements

Before ordering, confirm:

• Connections and size
• Pressure and temperature ratings
• Cracking-pressure tolerance and reseal requirements
• Leakage criteria
• Applicable standards or certifications

For sourcing, Spicer & Sandburg works with Check-All Valve and related manufacturers on oil and gas, pipeline, and industrial fluid-management projects. Options cover carbon steel, stainless steel, brass, and alloy construction with tube, pipe, or flanged connections.

Confirm current specifications, certifications, and availability directly before finalizing your order.

Applications, Installation, and Maintenance

Appropriate Low-Pressure and Low-Flow Applications

Common use cases include:

• Metering and dosing circuits
• Instrumentation lines
• Pump priming and suction lines (especially when the pump sits above liquid level)
• Low-pressure water systems
• Pneumatic circuits with limited available differential

Each application still needs media- and flow-specific selection. A valve that works for clean water won't necessarily hold up in a chemical dosing line.

Installation Practices

• Follow the body arrow or documented flow direction exactly
• Confirm the valve is rated for your intended mounting orientation
• Support connected piping so the valve body doesn't carry mechanical load
• Keep debris out — Check-All recommends clean, particle-free media and upstream filtration wherever compatible
• Provide straight pipe upstream (about 10 pipe diameters) after elbows, tees, or pump discharge to limit turbulence

Commissioning and Maintenance

Run a controlled commissioning check that covers:

• Forward opening and expected flow rate
• Reverse leakage and pressure stability
• Abnormal noise or vibration

For hazardous or high-energy systems, follow lockout/tagout procedures, isolate and depressurize fully, and use qualified personnel only. After startup, inspect seats and seals on the interval your media and duty cycle require, and replace the valve if reverse leakage or cracking pressure drifts out of spec.

Troubleshooting Low Cracking Pressure Check Valve Problems

When a low cracking pressure check valve misbehaves, symptoms usually trace to sizing, contamination, or installation—not random failure. Use the checks below before replacing parts.

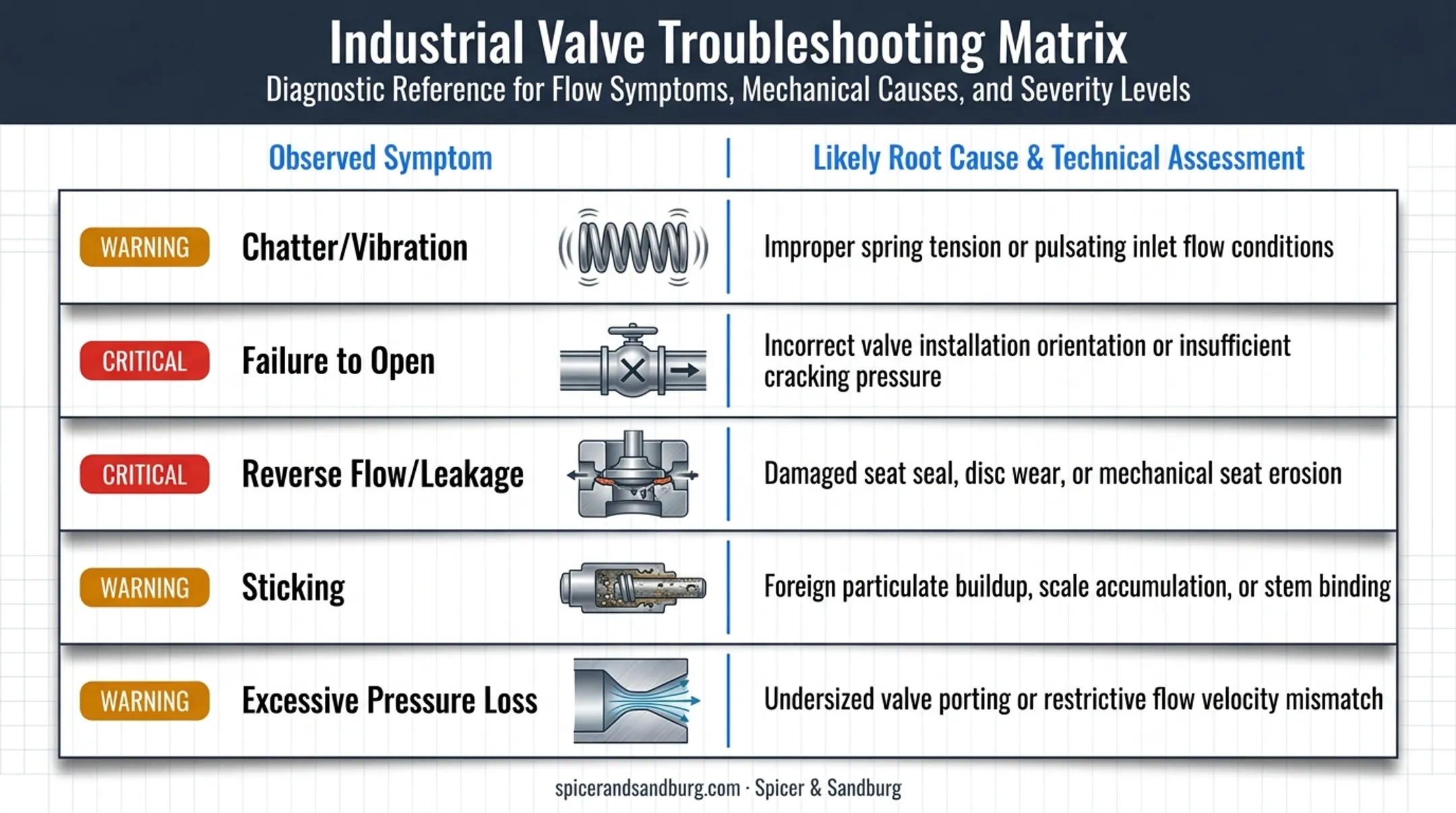

Common Symptoms and Likely Causes

• Chatter or vibration — oversized valve or spring for the actual flow, or too little pressure drop to hold the disc fully open
• Failure to open or delayed opening — incorrect orientation, spring fatigue, or contamination on the seat
• Reverse flow or leakage — damaged seat or disc, or debris trapped on sealing surfaces
• Sticking — scale or dirt lodged between the disc and body bore
• Excessive pressure loss — incorrect sizing or a Cv mismatched to actual flow conditions

Step-by-Step Diagnosis

1. Verify flow direction against the body arrow — reverse install is a frequent cause of no-flow or delayed opening
2. Measure inlet and outlet pressure at the valve — confirms whether differential pressure reaches cracking pressure
3. Compare actual flow, media, and temperature to the datasheet — flags sizing or application mismatch
4. Inspect the seat and disc for contamination or mechanical damage — debris and scoring are common leak paths
5. Confirm operation inside the rated temperature, pressure, and flow range — out-of-range duty shortens spring and seat life

Repair, Replacement, and Safety Boundaries

Cleaning or seal replacement can resolve contamination-related issues, but a fatigued spring or a scored seat usually calls for manufacturer-approved replacement rather than a field fix.

Avoid these three mistakes:

• Swapping springs without manufacturer guidance to "fix" cracking pressure
• Treating a check valve as a substitute for a pressure relief device
• Testing a pressurized or hazardous system without an approved procedure and qualified personnel

Frequently Asked Questions

What does cracking pressure mean on a check valve?

Cracking pressure is the inlet-to-outlet differential at which the valve first shows detectable forward flow. It's different from full-open pressure and from the valve's maximum pressure rating.

How do I calculate cracking pressure for a check valve?

No single formula covers every design. Factor in spring force, downstream pressure, orientation, and fluid conditions, then confirm the result against the manufacturer's rated value with controlled testing.

How much pressure does a check valve need to open?

It depends on the valve. Your system must supply enough differential to exceed the rated cracking pressure while still meeting flow rate and resealing requirements.

What does a minimum pressure check valve do?

It opens once a specified minimum differential is reached and closes to restrict reverse flow. It's not a pressure relief or safety valve, and shouldn't be used as one.

What is a low pressure water check valve?

It's a check valve selected or adjusted to open under limited water pressure, such as Circle Seal's 100 Series rated for around 4 inches of water column cracking pressure. Flow rate, temperature, orientation, and shutoff requirements still determine suitability.

What are signs of a bad check valve?

Watch for reverse flow, leakage, chatter, delayed opening, abnormal pressure loss, and vibration. If any appear, isolate the system safely and test against the manufacturer's specs before repair or replacement.
