Get the wrong one, and you're looking at inaccurate readings, process leakage, seized handles at the worst possible moment, or a valve that simply can't hold up under actual operating pressure. Material incompatibility and poor maintenance access cause more field problems than most operators expect.
This guide covers the terminology, components, configurations, selection criteria, installation practices, and procurement questions you need before ordering.
Key Takeaways
- Gauge root valves serve as the primary isolation point between the process and a pressure gauge or instrument.
- Match the valve to process media, pressure, temperature, connection type, materials, and required function.
- Needle, ball, globe, block-and-bleed, and multiport designs each fit different needs—none works everywhere.
- Always verify manufacturer specs, applicable standards, and site safety procedures before installing.
What Is a Gauge Root Valve?
A gauge root valve is an instrument valve installed at or near the process branch, isolating the process from a connected gauge, switch, transmitter, or similar device. It's the first line of defense between live process pressure and the instrument reading it.
What Does "Root" Mean in a Piping and Instrumentation System?
"Root" refers to position, not a valve style: it is the first isolation point off the process, at the start of the instrument connection. NOSHOK describes this setup as sitting between the primary meter and a differential-pressure transmitter or flow computer, so operators can block in, calibrate, or replace instruments without a full shutdown (NOSHOK).

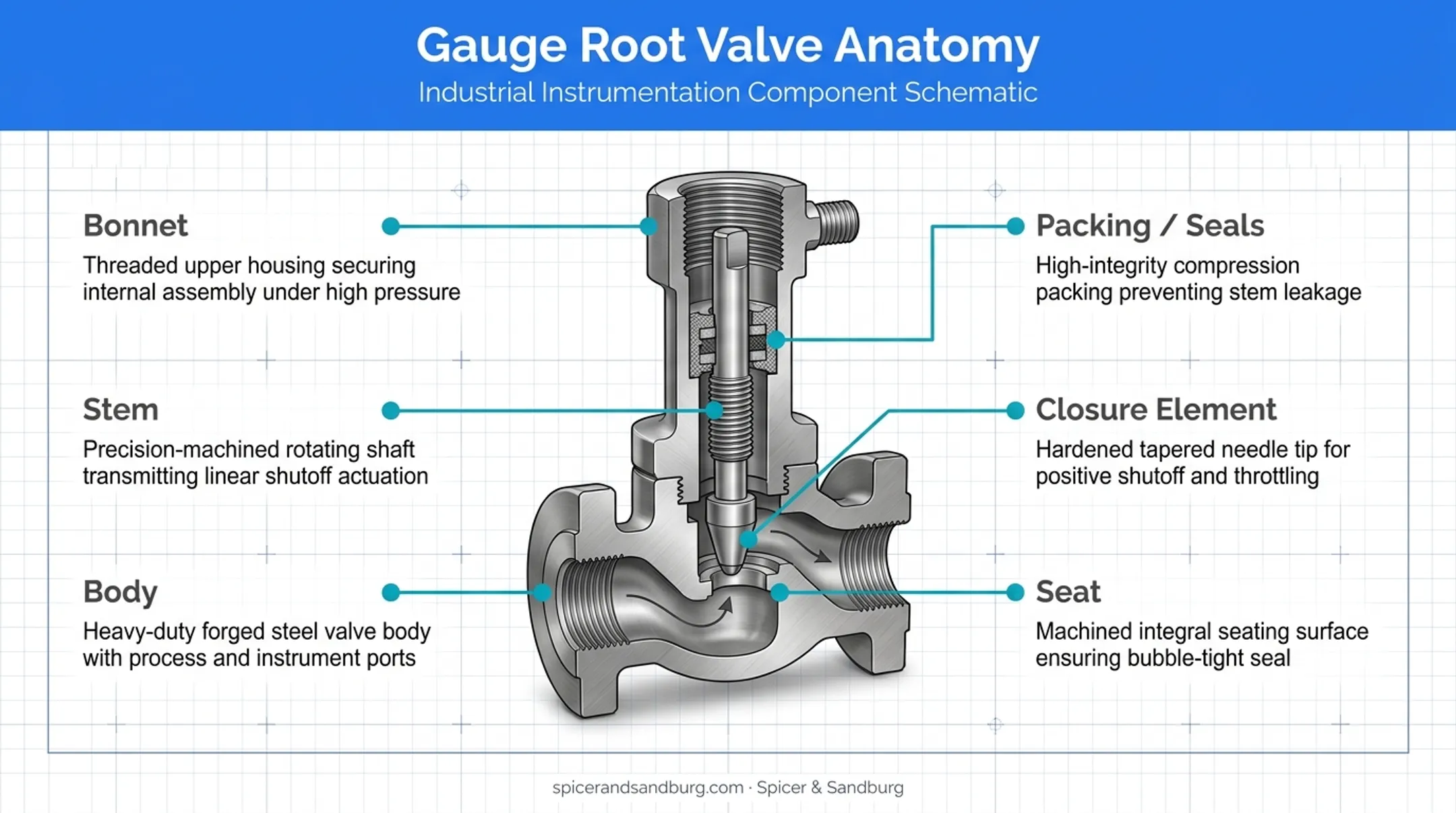

Main Parts of a Gauge Root Valve
Common components include:
- Body: pressure boundary, often 316 stainless, brass, or steel
- Stem: carries handle motion to the closure element
- Closure element: needle tip, ball, or globe disc that controls flow
- Seat: sealing surface for shutoff
- Bonnet: houses the stem and packing
- Packing/seals: block leakage around the stem
Exact parts and names vary by design. A needle valve's tapered stem tip works differently than a ball valve's quarter-turn ball, but the underlying function is the same: contain pressure, control flow, and seal tight when closed.
Why Are Gauge Root Valves Used?
The primary purpose is isolation, not regulation. A root valve lets you disconnect an instrument for maintenance, replacement, calibration, inspection, or troubleshooting — often without shutting down the entire process.
Isolation is not pressure relief. Not every root valve can safely vent or regulate, so confirm the model's ratings before using it for anything beyond shutoff.
Gauge Root Valve, Gauge Valve, Instrument Valve, and Manifold: Clarify the Terminology
These terms get used loosely, and manufacturers don't always agree on definitions.
- Root valve – primary isolation point at the process branch (NOSHOK's usage)
- Gauge valve – mounted directly on the instrument itself; Ashcroft's V01 gauge valve is a good example (Ashcroft)
- Instrument valve – the broad product family covering all of the above
- Instrument manifold – an integrated multi-valve assembly combining isolation, equalization, and bleed functions in one unit
Match the catalog definition to the function you need—primary process isolation, instrument-side shutoff, or multi-valve manifold—before you specify.
How Gauge Root Valves Work and Common Configurations
The pressure path is simple: process connection → root valve → gauge or instrument. Open the valve, and the instrument reads live pressure. Close it, and the instrument is isolated for service.
Common Gauge Root Valve Configurations
- Single isolation – one valve, one function: block or open
- Block-and-bleed – adds a controlled vent path for trapped pressure; NOSHOK recommends this for high-pressure or high-consequence hydrocarbon lines
- Multiport – additional ports for venting, purging, calibration, sampling, or a second instrument connection
Every port's intended use must be confirmed against the valve drawing. Don't guess.

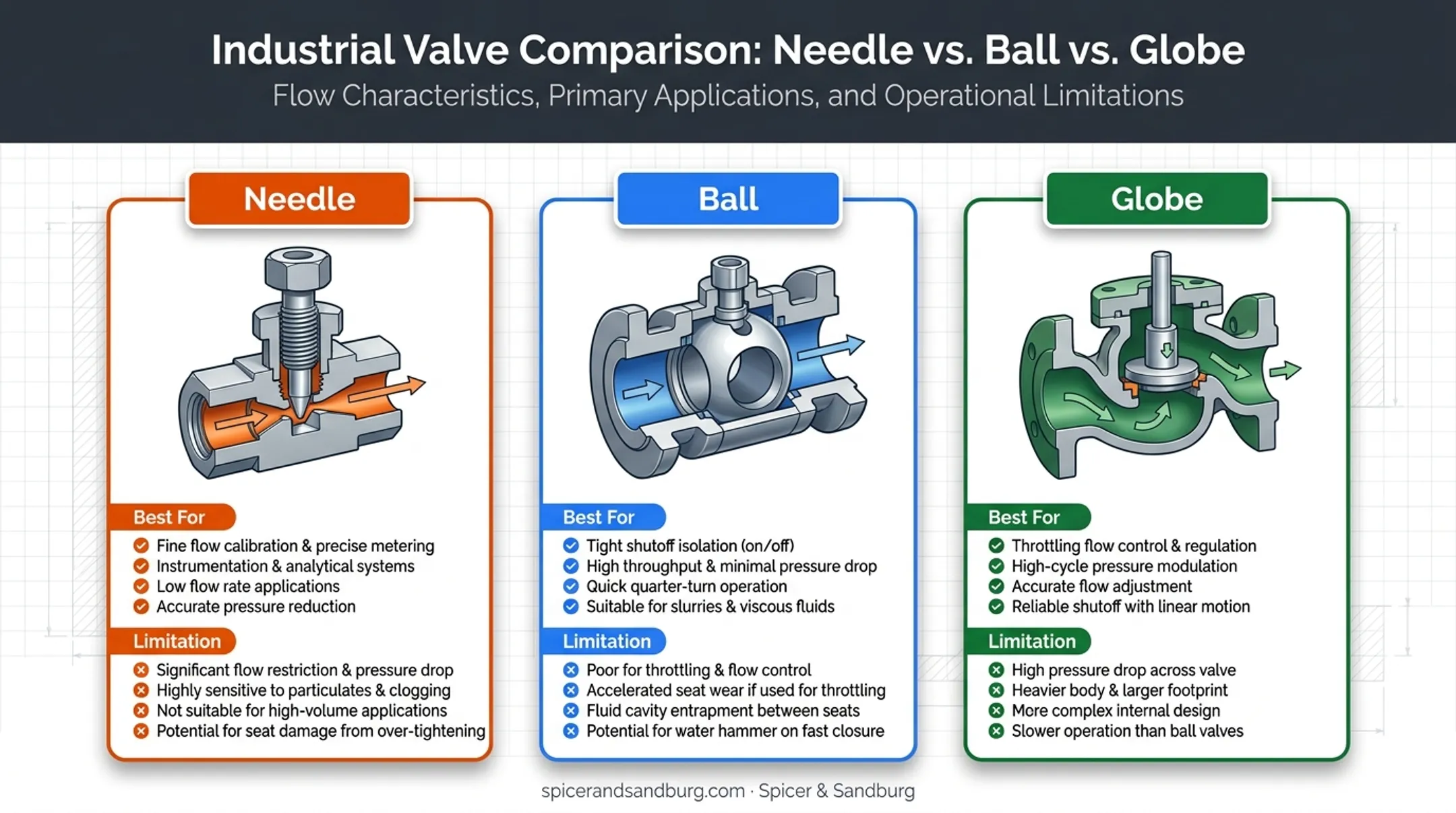

Needle, Ball, and Globe Valve Mechanisms
| Type | Best for | Limitation |
|---|---|---|
| Needle | Fine throttling, controlled venting | Slower to operate than ball |
| Ball | Quick on-off isolation, open flow path | Not built for continuous throttling |
| Globe | Regulation, sampling, discharge control | Tighter shutoff needs manufacturer confirmation |
Swagelok's own guidance places ball valves in on-off service and needle valves in flow-control or throttling roles. Needles can also handle shutoff (Swagelok). Don't specify a ball valve for continuous throttling duty without checking the model's approval.
Normal Measurement Versus Isolation and Maintenance
A typical sequence looks like this:
- Measurement – valve open, instrument reads live process pressure
- Isolation – valve closed, instrument disconnected from process
- Venting – trapped pressure bled only through a properly rated, designated port
Never loosen fittings or pull an instrument off a pressurized connection. Follow site procedures every time.
Example Process Arrangement

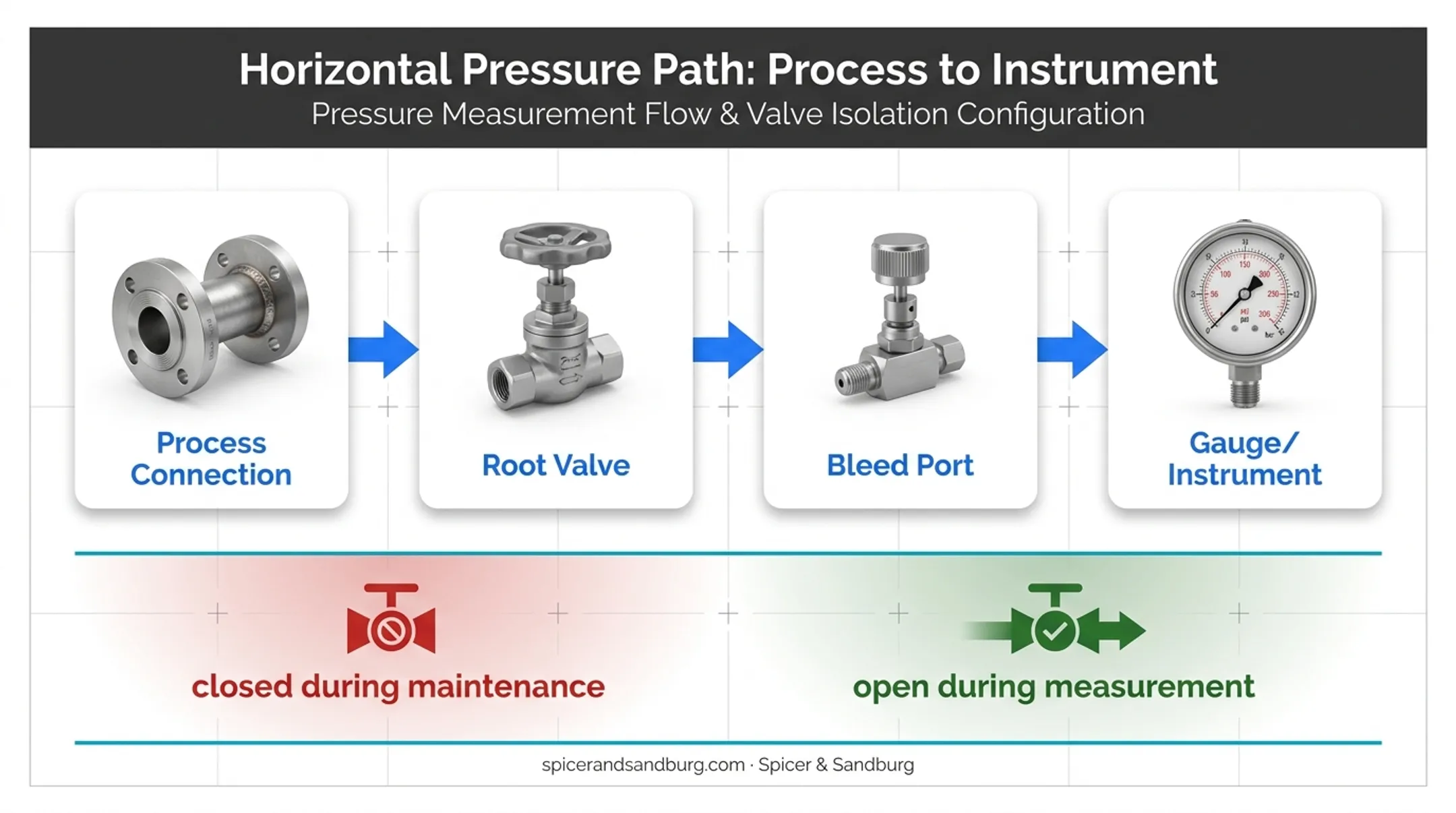

Picture a pressure gauge on a production line: process side → root valve → gauge connection, with an optional bleed port between the valve and gauge.
During maintenance, the root valve isolates the gauge from the process. The bleed port releases trapped pressure before the gauge is removed. Only the instrument side is opened. The process side stays sealed.
How to Select the Right Gauge Root Valve
1. Start with process media. Identify whether you're dealing with gas, liquid, corrosive chemicals, abrasive particles, or hazardous components. Media type drives every material and seal decision that follows.
2. Match pressure and temperature. Pull the manufacturer's actual pressure-temperature chart. Parker's needle valve catalog shows 316 stainless bodies rated at 5,000 psig CWP in one configuration, while brass, steel, and Monel bodies top out at 3,000 psig CWP for the same series (Parker). A generic industry rating won't cut it. Check the exact model.
3. Pick the right function:
- Simple isolation → ball or needle
- Controlled throttling → needle
- Bleed/purge access → block-and-bleed or multiport
- Multi-instrument connection → manifold
A valve built for shutoff shouldn't be pressed into throttling duty just because it's on hand.
4. Check every wetted material. Body, stem, seat, packing, and seals each have their own compatibility profile. Confirm whether a stated material rating applies to the whole valve or just the body.
5. Confirm the connection interface. Match threaded, flanged, welded, or tube-fitting ends to your system, along with port size, gauge interface, orientation, and clearance for handle operation.
6. Verify documentation before purchase. Request current product drawings, pressure-temperature charts, material certifications, and traceability documentation, especially if project specs require them.
Installation, Operation, Maintenance, and Safety
Selecting the Installation Location
Position the valve close enough to the gauge for practical isolation and servicing, but away from excessive vibration, heat, and mechanical damage. Confirm orientation and support requirements from the manufacturer before you weld or bolt anything in place.

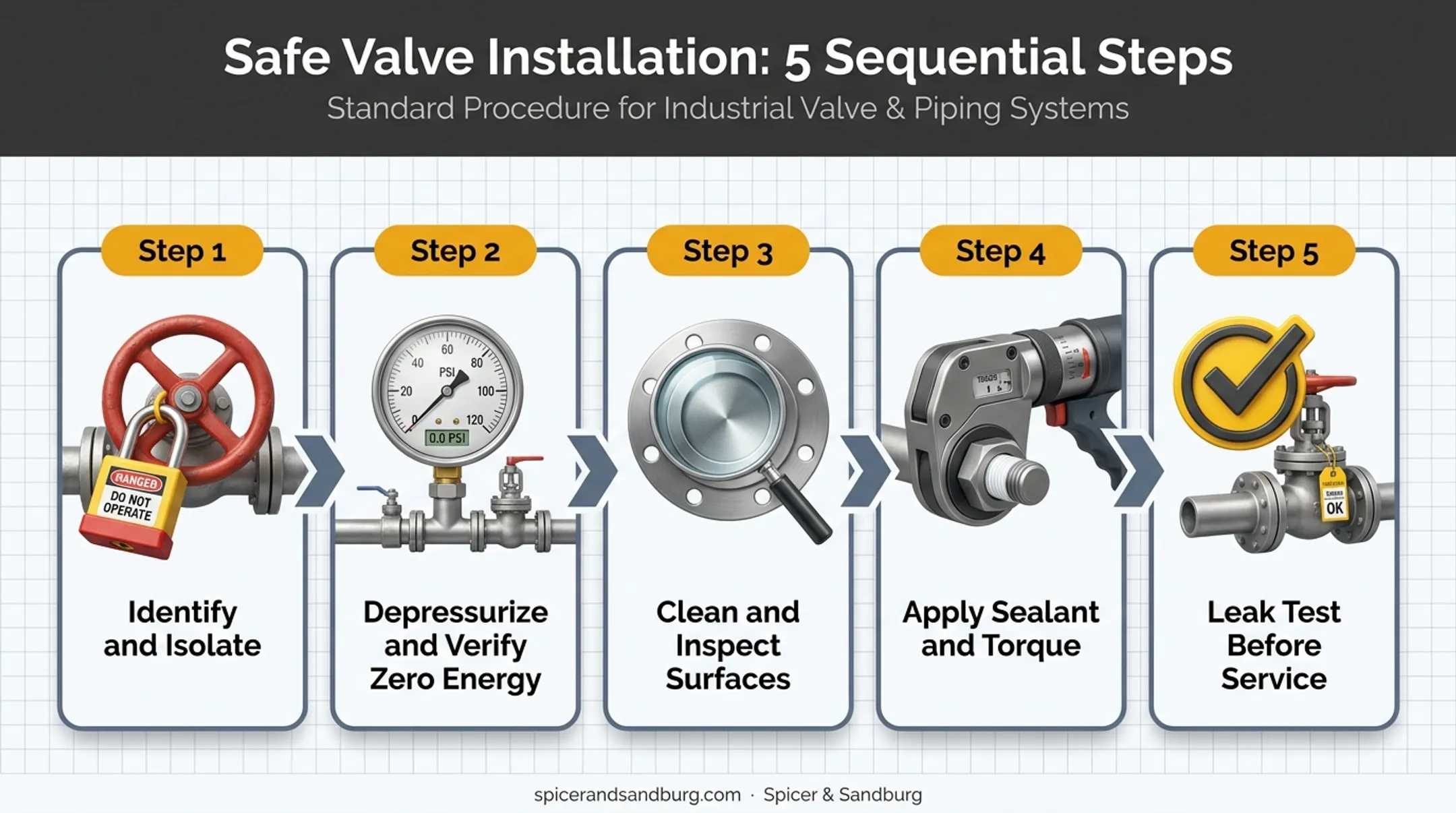

Safe Installation and Commissioning
- Identify the process fluid and isolate upstream and downstream as required
- Depressurize the line and verify zero energy before breaking any connection
- Clean and inspect connection surfaces for damage, debris, or thread defects
- Apply the specified sealant or gasket and torque to manufacturer values
- Perform an appropriate leak test at operating pressure before return to service
Mechanical install steps are only part of the job. OSHA's lockout/tagout standard still requires written isolation steps, control of stored or residual energy, and verification of deenergization before work begins (OSHA 1910.147). A closed root valve alone doesn't satisfy that requirement — it's one step in a documented procedure, not a substitute for it.
Operating the Valve
Open and close slowly to limit pressure shock at the gauge. On multiport designs, use the vent or calibrate position to isolate and bleed the instrument without removing it from the line.
Do not throttle with a root valve for extended periods unless the manufacturer rates that valve for continuous modulating duty.
Inspection and Maintenance
Check periodically for:
- Leakage at the body, stem, or connections
- Corrosion or pitting
- Damaged handles or seized operation
- Packing deterioration
- Blocked bleed ports
- Connected gauge accuracy drift
A root valve isn't a pressure-relief device unless it's specifically designed and rated for that job. Treating it as one is a common and costly mistake.
Applications, Procurement, and Supplier Considerations
Where Gauge Root Valves Are Used
Gauge root valves sit at the point where pressure instruments connect to a live process line:
- Drilling and well completion
- Production operations
- Pipeline and fluid-management systems
- Industrial manufacturing
- Construction and facility maintenance
Match each use case to the product’s documented pressure, temperature, and material ratings before you specify.
Information to Provide When Requesting a Valve
Have this ready before you call a supplier:
- Process fluid and normal/maximum pressure
- Temperature range
- Hazardous-service considerations
- Required function (isolation, throttling, venting)
- Body and seal materials
- Connection standard and port arrangement
- Gauge or instrument interface
- Installation environment
- Required documentation
- Quantity and delivery timeline
Selecting a Reliable Industrial Supply Partner
Once your operating conditions are defined, the next step is a supplier who can source the right valve and supporting components without sending you to three different vendors.
Spicer & Sandburg is a US industrial supply and distribution partner for oil and gas and broader industrial buyers. Through a curated manufacturer network, we cover:
- Instrumentation valves and tube fittings, including Hy-Lok USA
- Pressure gauges and precision measurement products, including PIC Gauges
- Related pipe fittings, flanges, and fluid-management components
One supplier relationship means fewer handoffs and more consistent specs, documentation, and delivery coordination across the bill of materials. If you are specifying a gauge root valve for an upcoming project, call +1 405-619-7701 to confirm availability, compatible brands, ratings, and required documentation.
Frequently Asked Questions
What are the parts of a valve called?
On a gauge root valve, common parts include the body, bonnet, stem, closure element, seat, packing or seals, handle, and inlet/outlet ports. Exact configuration varies by valve type.
What is a gauge root valve used for?
It isolates a pressure gauge or other instrument from the process so you can maintain, calibrate, or vent safely. Multiport designs can also support extra instrument connections.
What is the difference between a root valve and a manifold?
A root valve is the primary process isolation point. A manifold is a multi-valve assembly that can combine isolation, equalization, and bleed functions in one unit.
Should I choose a needle valve or a ball valve for a pressure gauge?
It depends on whether you need fine throttling (needle) or fast on-off isolation (ball). Media, pressure, temperature, and manufacturer limitations all factor in too.
How do I choose the material and pressure rating for a gauge root valve?
Match wetted materials and seals to the process media first. Then verify the manufacturer's pressure-temperature rating against normal, maximum, and transient conditions—don't rely on generic industry ratings.
Where should a gauge root valve be installed?
Commonly at or near the process instrument branch for accessible isolation. Make sure there's adequate support, clearance, environmental protection, and compliance with your piping and instrumentation design.
