In oil and gas piping, fittings hold pressure boundaries, redirect flow, and connect systems that carry hydrocarbons, produced water, and sour gas at extreme pressures and temperatures. A misapplied elbow or an undocumented tee isn't a minor procurement slip. It's a safety and integrity risk.
This guide is for engineers, procurement teams, maintenance personnel, EPC contractors, and operations managers who need to identify common fitting types, understand material and standard requirements, and make a specification-led purchasing decision — not a guess based on shape and nominal size.
Key Takeaways
- Fittings connect, redirect, branch, reduce, or terminate pipe runs.
- Valves control flow and are not interchangeable with fittings.
- Match elbows, tees, reducers, couplings, unions, caps, plugs, olets, and stub ends to layout and maintenance needs.
- Select materials for pressure, temperature, fluid chemistry, sour service, and corrosion exposure.
- Confirm dimensions, pressure-temperature ratings, and ASME/ASTM/MSS requirements before ordering.
What Are Pipe Fittings and What Do They Do in Oil and Gas?
A pipe fitting is a pressure-containing component used to join pipe sections, change direction, branch a line, alter diameter, or terminate a run. That's the practical scope: elbows, tees, reducers, couplings, unions, caps, plugs, olets, and stub ends.
Fittings are not the same as:
- Valves — control or stop flow; fittings don't
- Flanges — detachable bolted connections, governed by their own standard (ASME B16.5)
- Instrumentation tube fittings — smaller-bore compression or ferrule connections for control and measurement lines
- Gaskets and nipples — sealing components and short pipe connectors, not fitting categories themselves
These distinctions matter across every operating segment. Each part of the value chain puts different demands on the fitting:
- Upstream — wellsite piping, production manifolds, and flowlines need fittings rated for wellhead pressures
- Midstream — gathering and transmission lines need fittings that support pigging and long-run flow
- Downstream — refining and storage systems add process chemistry and thermal-cycling demands
The fitting has to match the segment, not just the pipe size.
Common Types of Pipe Fittings Used in Oil and Gas
Elbows, Bends, and Returns
Elbows change flow direction at 45, 90, or 180 degrees. Long-radius elbows reduce pressure drop and turbulence, which matters where pigging or smooth flow is required. Short-radius elbows save space but increase resistance.
ASME B16.9 covers factory-made wrought butt-welding fittings generally, while ASME B16.28 specifically addresses short-radius elbows and returns. Always check project design code before assuming a long-radius bend is acceptable; some layouts simply don't have the room.

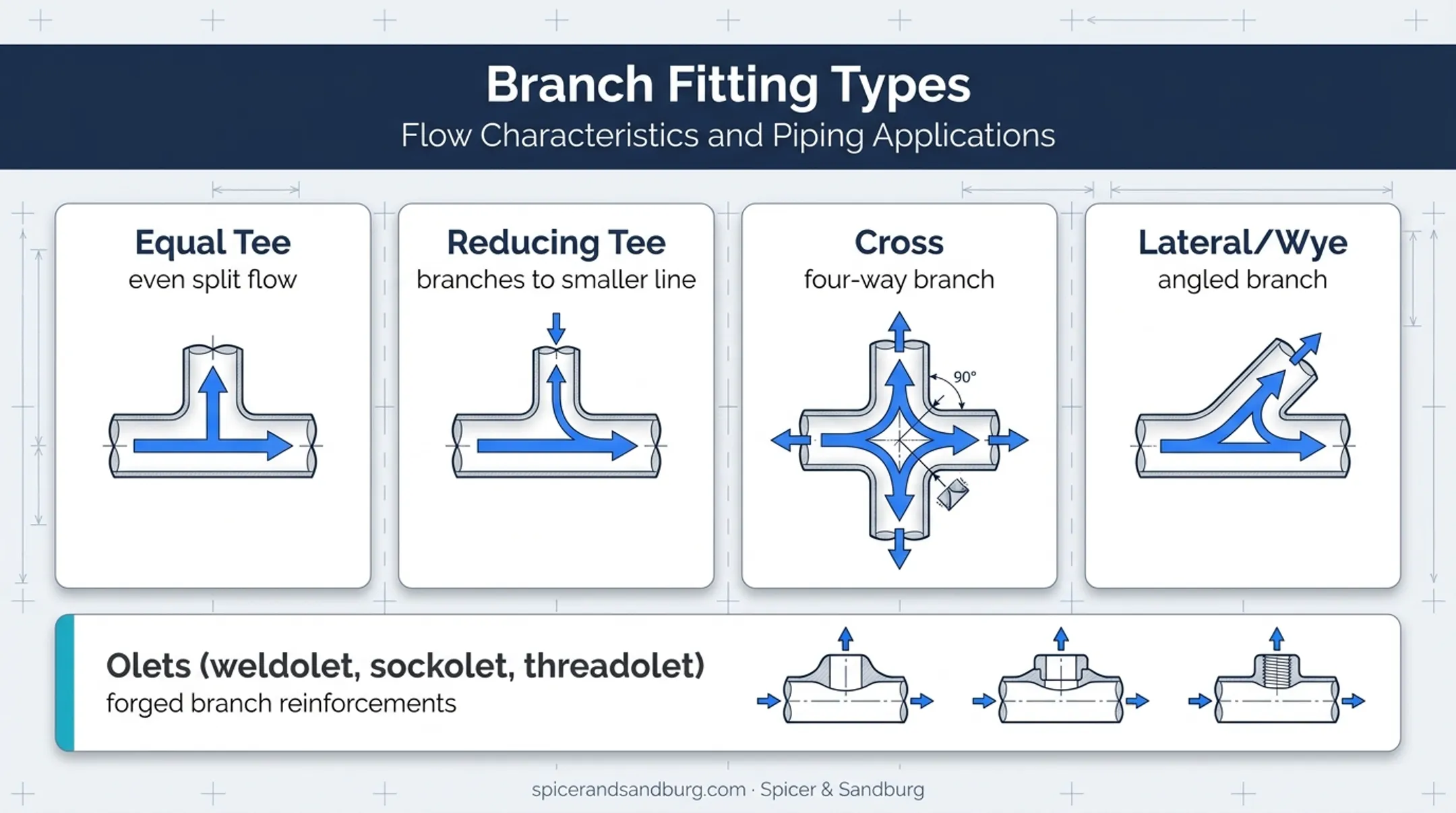

Tees, Crosses, Laterals, and Olets
Equal tees split flow evenly; reducing tees branch into a smaller line. Crosses (four-way branches) show up less often in process piping because they concentrate stress at a single point. Laterals, or wye fittings, offer angled branching where a 90-degree tee would create excess turbulence.
Olets (weldolets, sockolets, threadolets) are forged branch connections that reinforce the outlet without a full tee. MSS SP-97 governs their dimensions and testing. Where pigging matters, a barred tee adds internal bars across the branch opening so the pig stays in the main run instead of diverting into the branch.
Reducers and Swage Nipples
Concentric reducers keep a shared centerline. Eccentric reducers offset it and are often specified at pump suction lines to avoid trapping air or vapor at the top or bottom of the pipe, depending on orientation. Choose based on drainage needs and equipment nozzle alignment, not default preference.
Swage nipples transition from larger pipe to smaller threaded or socket-weld connections in a single compact fitting. Verify pressure rating, material, and end-connection compatibility before specifying. A swage that "looks right" in a catalog may not match your schedule or class.
Couplings, Unions, Adapters, and Nipples
- Couplings create permanent or semi-permanent joins, common in smaller-bore systems
- Unions support disassembly so maintenance can proceed without cutting pipe
- Adapters and nipples handle transitions or short connections between threaded, socket-weld, or other end types
Threaded and socket-weld configurations both need pressure, temperature, and service review. A threaded joint that's fine at low pressure may not hold at higher process temperatures.
Caps, Plugs, Stub Ends, and Flange-Related Connections
Caps and plugs terminate, isolate, or seal a pipe end for testing, future tie-ins, or permanent closure. A stub end is a short butt-weld fitting used with a lap-joint flange, giving you a bolted, detachable connection without welding a flange directly to the pipe.
Flanges are detachable connecting components. A bolted flange joint gives inspection and maintenance access where a permanent weld would not.
Materials, Ratings, and Standards for Oil and Gas Pipe Fittings
Material Families and Service Compatibility
Common families include carbon steel, low-temperature carbon steel, alloy steel, stainless steel, duplex/super duplex stainless, and nickel alloys. The right choice depends on:
- Process fluid chemistry and phase
- Temperature range, including low-temperature toughness needs
- Sour service (H2S), CO2, and chloride exposure
- Erosion potential from solids or high velocity
- External corrosion environment
Sour-service applications should reference ANSI/NACE MR0175 / ISO 15156, which sets material-selection and cracking-resistance requirements for H2S-containing production environments. This standard is not automatically applicable to downstream refinery equipment, so confirm project scope before applying it.
Dimensions, Pipe Schedule, Pressure Class, and Temperature
Matching nominal pipe size (NPS) alone does not guarantee compatibility. Confirm:
- Outside diameter and wall thickness/schedule
- Bore alignment with connected pipe
- Pressure class and pressure-temperature rating
- End preparation and material grade
Two fittings with the same NPS label can have completely different pressure ratings if schedule or material grade differs.
Common ASME, ASTM, MSS, API, and NACE/ISO References
| Standard | Covers |
|---|---|
| ASME B16.9 | Factory-made wrought butt-welding fittings |
| ASME B16.11 | Forged socket-weld and threaded fittings |
| ASME B16.28 | Short-radius elbows and returns |
| ASME B16.5 | Pipe flanges and flanged fittings |
| ASTM A234 | Wrought carbon/alloy steel fittings |
| ASTM A105 | Forged carbon steel components |
| ASTM A350 | Low-temperature service fittings |
| ASTM A403 | Wrought austenitic stainless fittings |
| ASTM A815 | Duplex stainless fittings |
API and NACE/AMPP or ISO sour-service requirements are application- and equipment-specific. Verify the exact project, operator, and code requirement rather than assuming one standard applies universally.
Manufacturing Methods and End Connections

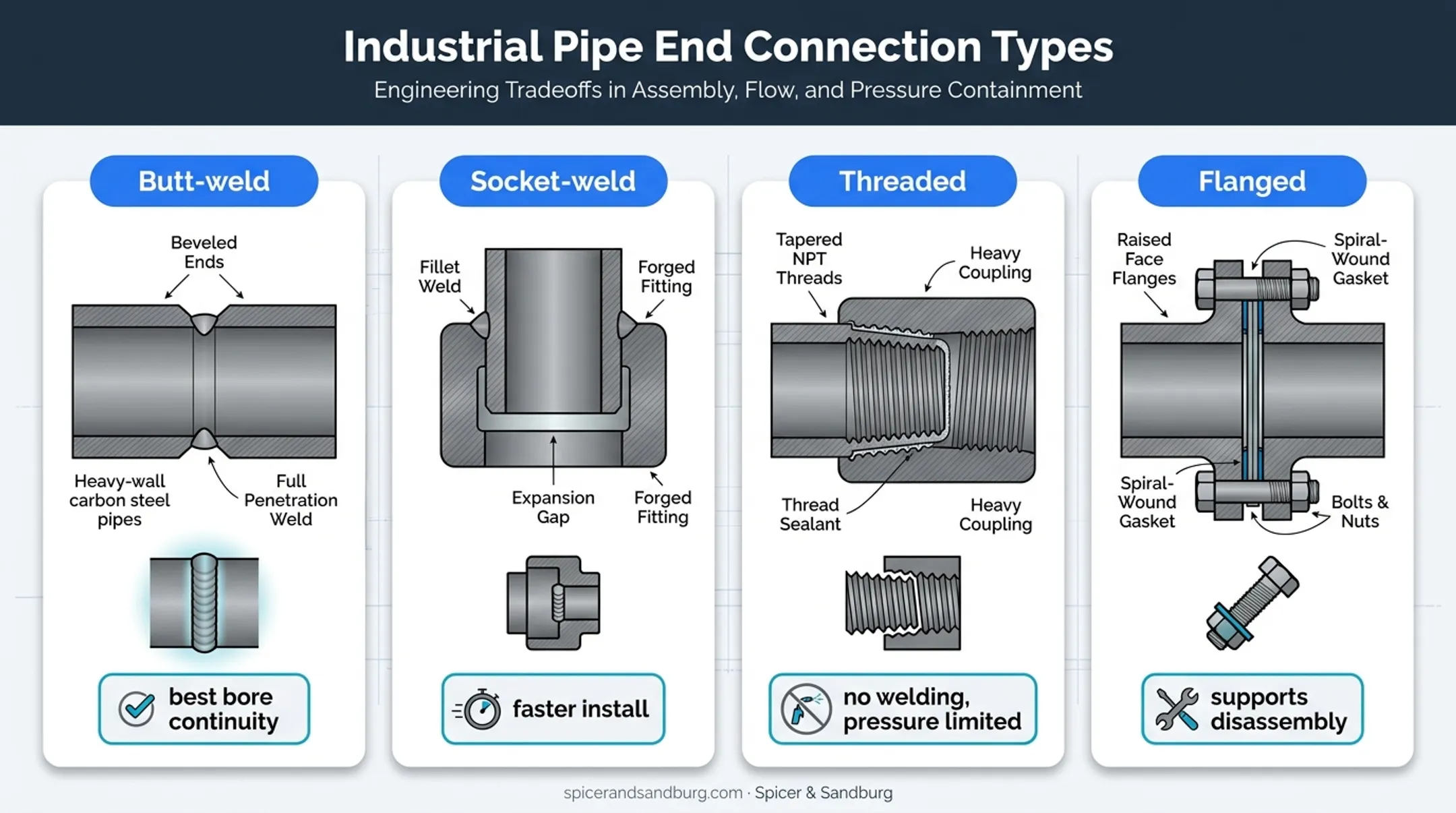

Wrought and forged fittings are shaped from qualifying product forms (forgings, bars, seamless or welded tube). Seamless construction usually yields cleaner NDE results; welded construction needs its own examination class. Each connection type carries tradeoffs:
- Butt-weld: full-penetration weld, best bore continuity, permanent joint
- Socket-weld: forged fitting, faster install, common on small bore
- Threaded: no welding required, limited by pressure and temperature
- Flanged: bolted joint that supports disassembly and inspection
Quality Records and Inspection Expectations
Before shipment, your purchase order should require:
- Material test reports (MTRs) with heat-number traceability
- Positive material identification (PMI) where specified
- Dimensional and visual inspection records
- NDE and hydrostatic testing where the project calls for it
- Certificates of conformity matching the actual fitting supplied
Write these requirements into the specification up front rather than trying to add them after award.
How to Select the Right Pipe Fittings for an Oil and Gas System
Right-sizing fittings is a sequence, not a catalog browse. Lock the service envelope first, then match function, dimensions, ratings, and supplier documentation before anything hits a purchase order.
Start With the Complete Service Envelope

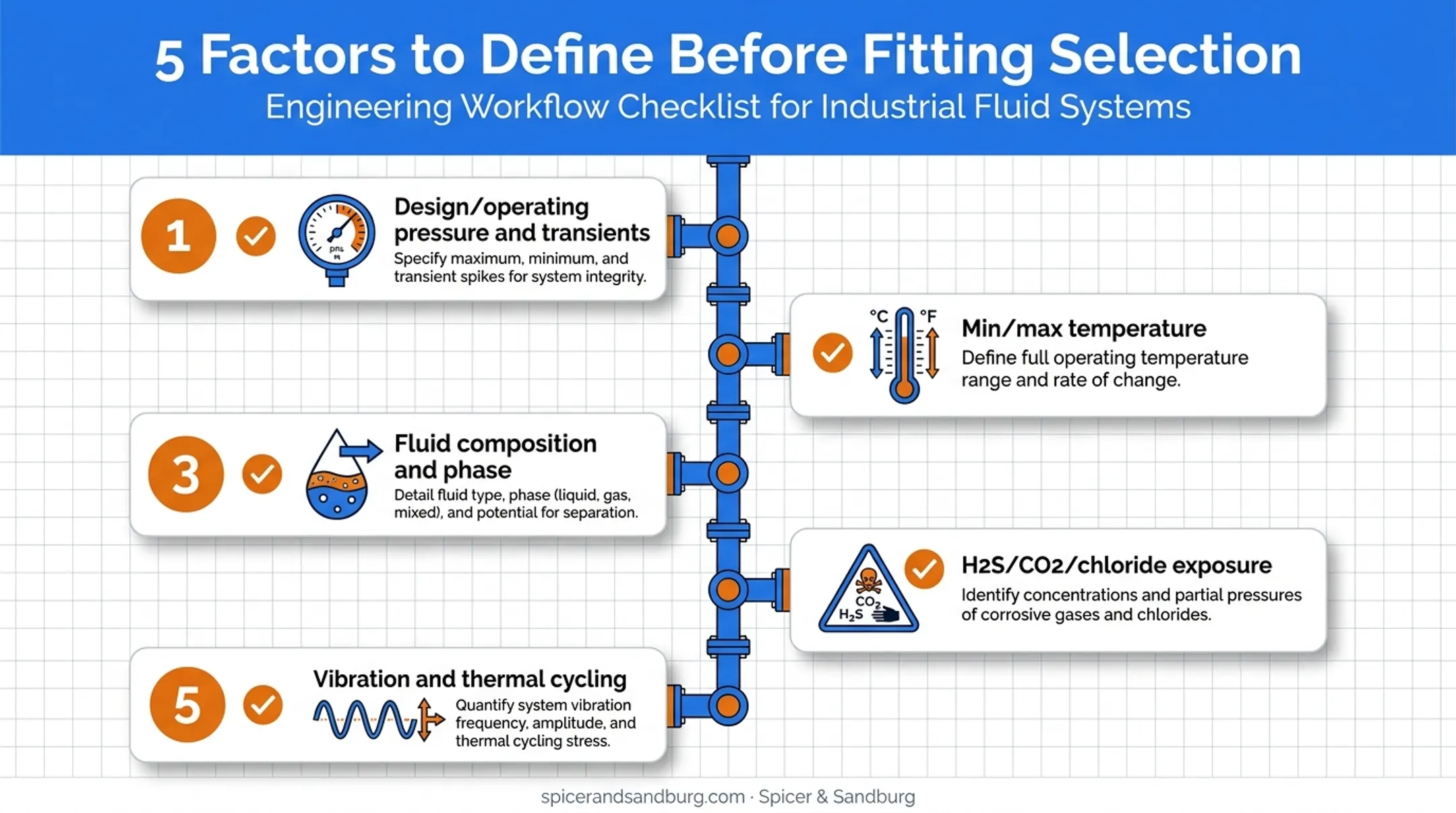

Before picking a shape, define:
- Design and operating pressure, plus transient conditions
- Minimum and maximum temperature
- Fluid composition, phase, and solids content
- H2S, CO2, and chloride exposure
- Vibration, thermal cycling, and external environment
A fitting can't be selected from shape or nominal size alone. Final selection belongs to the responsible engineering authority, not a catalog page.
Match Fitting Function to Piping Layout
Match each fitting to its job in the layout:
- Elbows for direction changes
- Tees or olets for branches
- Reducers for size transitions
- Couplings or unions for connections
- Caps or plugs for termination
Also factor in space constraints, drainage, equipment nozzle alignment, piggability, and future inspection access.
Confirm Dimensional and Connection Compatibility
NPS, schedule, outside diameter, wall thickness, bore, radius, and end preparation all have to align with the connected pipe and equipment. Mixing incompatible connection systems, pressure classes, or gasket/bolting arrangements creates leak risk — even when everything "looks" the same size.
Verify Ratings, Materials, and Standards
Cross-check the fitting's pressure-temperature rating and material spec against the piping class, line list, P&ID, and isometric drawing. Confirm sour-service suitability, corrosion allowance, coating requirements, and weld procedure specs against the project standard.
Review Supplier Capability and Documentation Before Ordering
A solid purchase-order checklist covers:
- Fitting type, size, schedule, and material grade
- Applicable standard and pressure class
- End connection type and quantity
- Inspection plan and required certificates
- Traceability and approved-manufacturer status
- Delivery requirements for long-lead items
Request technical data before shipment, especially for high-pressure, sour-service, or offshore components. Spicer & Sandburg helps teams source carbon steel, stainless, and specialty fittings from vetted manufacturers and align certificates, traceability, and approved-manufacturer requirements before the order lands.
Oil and Gas Applications, Quality, and Sourcing Considerations
Upstream Drilling, Completion, and Production
Wellsite piping, production manifolds, flowlines, and chemical injection systems all use process fittings. Wellhead and pressure-control equipment often carry separate API requirements.
A general-purpose fitting isn't automatically suitable for high-pressure or sour-service duty just because it matches the nominal size. Confirm material grade, pressure class, and traceability against the service rating before you specify.
Midstream Pipelines and Downstream Facilities
Gathering systems, compressor stations, storage terminals, and refineries each place different demands on fittings:
- Long-radius bends and barred tees support piggable transmission lines
- Reducers and branch fittings handle compressor station tie-ins
- Flanged connections support maintenance access at pump and compressor stations
Downstream refining service shouldn't automatically inherit upstream sour-service rules — refinery process conditions call for their own materials and inspection review.
Sourcing Through a Qualified Industrial Supply Partner
Spicer & Sandburg works across drilling, completion, production, and broader industrial operations. The team connects oil and gas professionals with manufacturer partners for carbon steel and stainless pipe fittings, flanges, valves, and instrumentation tube fittings.
A single supplier relationship helps coordinate fitting specifications, manufacturer documentation, and procurement requirements—especially when one order spans multiple fitting types and materials. Confirm stock availability and certifications for your exact requirement before you issue a purchase order.
Frequently Asked Questions
What are the common types of pipe fittings used in the oil and gas industry?
Common types include elbows for direction changes, tees and olets for branch connections, and reducers for size transitions. Couplings and unions join pipe or allow disassembly, while caps, plugs, and stub ends handle termination or flange connections.
What are pipe fittings in oil and gas?
Fittings are pressure-containing components used to connect, redirect, branch, reduce, or terminate pipe sections. They maintain a safe, functional flow path throughout upstream, midstream, and downstream systems.
What types of pipe are used in oil and gas?
Pipe materials vary by service: commonly carbon steel, alloy steel, stainless or duplex steel, and specialty alloys. Pressure, temperature, fluid chemistry, sour-service exposure, and applicable ASME/ASTM standards determine the final choice.
