Introduction
Extreme heat doesn't announce itself before it wrecks a threaded connection. It just sits there, cycling hot and cold on a tool joint or wellhead flange, until a routine breakout turns into a snapped stud and a rig sitting idle.
Standard grease isn't built for this. It carbonizes, runs off, or breaks down completely after a single heat cycle, leaving bare metal exposed to galling, corrosion, and seizing. Once threads gall, the fastener is often ruined, and the downtime that follows can stretch from hours to days.
This guide covers what high temp anti-seize lubricant actually is, the major formulation types and their real temperature limits, where they're used across drilling and industrial operations, how to apply them correctly, and what to look for in a supplier.
Key Takeaways
- High-temp anti-seize suspends copper, nickel, lead, zinc, or graphite particles in a carrier to prevent seizing at temperatures reaching 2,400°F
- Matching formulation to base metal matters — copper on the wrong substrate can create bigger problems than it solves
- Lubricated fasteners need adjusted torque values — lower friction changes how torque becomes clamping force
- Use the right compound on tool joints, wellheads, and downhole equipment where heat and load drive seizing risk
- Specify formulation by metal, temperature, and service conditions so the right compound reaches each joint
What Is High Temp Anti-Seize Lubricant and How Does It Work?
High temp anti-seize is a dual-component compound engineered to keep threaded fasteners from welding themselves together under extreme heat and load, conditions where standard lubricants simply give up.
It works through two distinct parts, each with a job to do.
The Carrier Fluid
The carrier is a synthetic or petroleum-based oil or grease that suspends the solid particles evenly throughout the compound. During assembly, this carrier provides the initial lubrication, letting fasteners thread together smoothly and consistently.

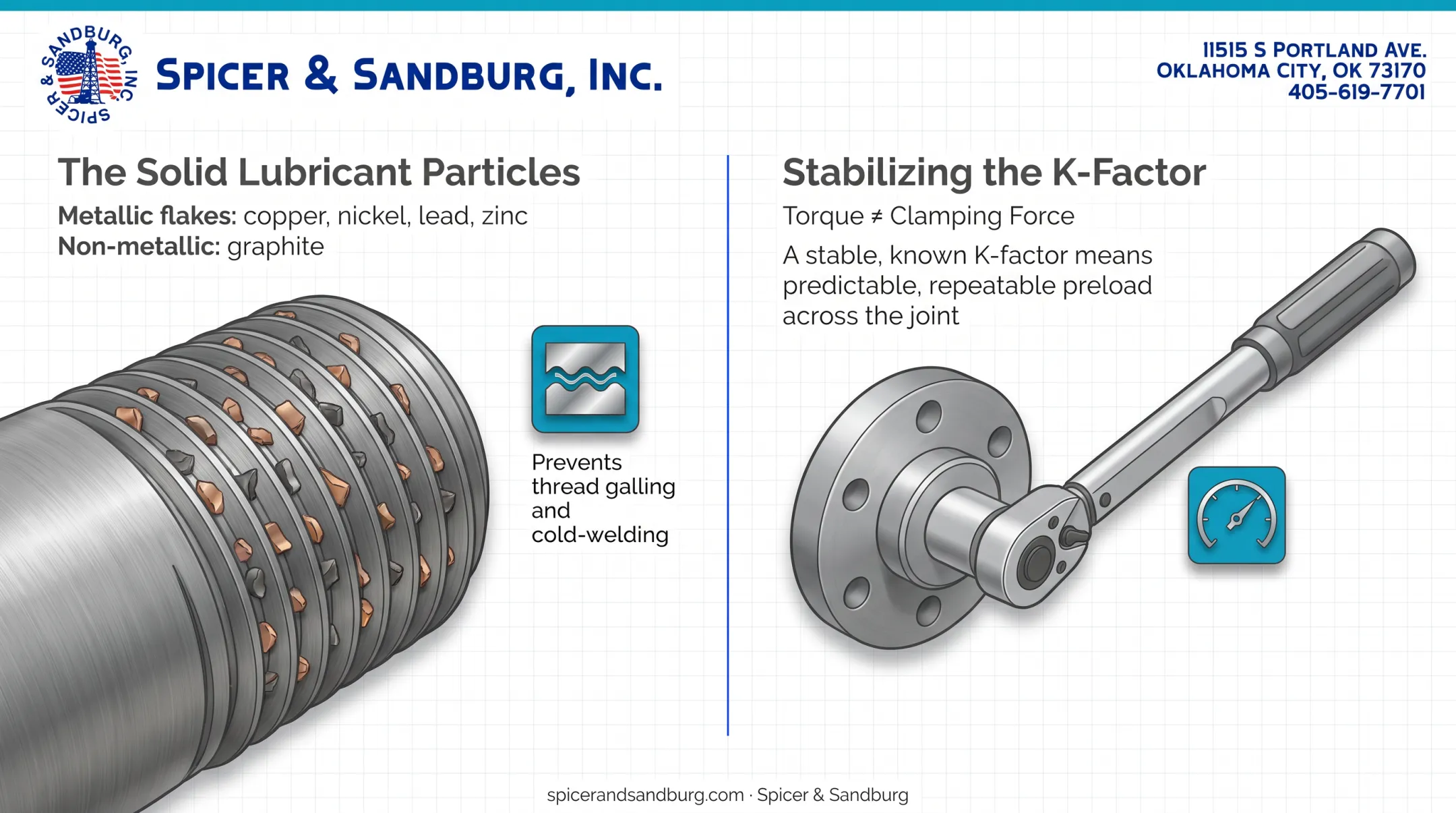

The Solid Lubricant Particles
Once temperatures climb, the carrier fluid burns off. What's left behind are the solid particles: metallic flakes like copper, nickel, lead, or zinc, or non-metallic solids like graphite. These particles don't disappear with the oil. Instead, they:
- Wedge into microscopic surface irregularities on mating metal parts
- Form a physical barrier that prevents thread galling
- Stop metal-to-metal cold-welding, even after repeated heat cycles
This leftover solid matrix is really the whole point of a high-temp formulation. A general-purpose grease has nothing left to protect the joint once its oil phase cooks off. Anti-seize does.
Beyond keeping threads from seizing, anti-seize also stabilizes the torque coefficient (the K-factor). That matters because torque and clamping force aren't the same thing: a wrench reads torque, but clamp load is what actually holds the joint together.
Without a consistent K-factor, two identical torque readings can produce very different clamping force. A stable, known K-factor means the number on the torque wrench translates into predictable, repeatable preload across the bolted joint.
Types of High-Temp Anti-Seize Formulations and Their Temperature Limits
Not all anti-seize is created equal, and treating "high temp" as one category is a mistake. Temperature ratings and metal compatibility vary significantly by formulation, sometimes even between products in the same chemistry family.
Copper-Based Anti-Seize
Copper-based compounds are rated to roughly 1,800°F (982°C), and are built from micro-fine copper flakes suspended in a semi-synthetic grease carrier.
Copper formulations work well on:
- Carbon steel and iron fasteners
- General industrial and automotive bolted connections
- Applications where sustained heat exposure is expected but not extreme
One caution: manufacturers generally recommend switching to nickel-based formulations wherever copper contamination must be avoided, especially on stainless steel, titanium, and nickel alloys.
Nickel-Based Anti-Seize
Nickel-based anti-seize handles significantly more heat. Nickel formulations are commonly rated up to 2,400°F (1,316°C), with service ranges extending down to -65°F (-54°C), and they are chemically inert and acid-resistant.
Exact ratings remain product-specific. Even within the nickel category, published limits differ between grades, so confirm the figure on the technical data sheet for the product you specify.
Nickel is the go-to choice for:
- Stainless steel, titanium, and nickel alloy fasteners
- Refinery and power generation equipment where chemical inertness matters
- Applications where copper contamination is unacceptable
Lead-Based Anti-Seize
Lead-based compounds are a moderate-temperature option rather than a high-temp one. Lead melts at 621°F (327°C), so these formulations are typically rated to around 500°F (260°C) and should not be specified above that range.
Where they earn their place is soft-metal service and oilfield thread compounds. Lead is soft enough to deform into thread flanks under makeup load, which is why lead-containing dopes have a long history on tubular connections.
Lead formulations fit:
- Moderate-temperature threaded connections and soft-metal assemblies
- Oilfield thread compounds where makeup lubricity matters more than peak heat
- Applications with no restriction on lead content
One caution: confirm lead is permitted for the service. Potable water, food contact, and many facility specifications prohibit lead-containing compounds outright.
Zinc-Based Anti-Seize
Zinc-based anti-seize sits just above lead on temperature and adds galvanic protection. Zinc melts at 787°F (419°C), which puts practical ratings near 750°F (399°C).
Zinc's real advantage is sacrificial corrosion protection: it corrodes preferentially to steel, shielding the fastener underneath. That makes it a fit for outdoor, marine, and wash-down exposure where moisture, not heat, is the main threat.
Zinc formulations fit:
- Galvanized and steel fasteners needing sacrificial corrosion protection
- Moderate-temperature joints exposed to weather or humidity
- Assemblies where lead content is not acceptable
Like lead, zinc is a moderate-temperature material. Do not substitute it into a joint specified for copper, nickel, or graphite service.
Graphite and Synthetic Anti-Seize
For nuclear, turbine, and extreme-pressure applications, graphite and high-purity synthetic formulations are the standard. These compounds use low sulfur and halogen content, because contamination from those elements can degrade certain alloys over time.
Graphite grades are commonly rated up to 2,400°F (1,316°C), and high-purity synthetic graphite carriers are built for non-wetted auxiliary equipment in power plant environments.

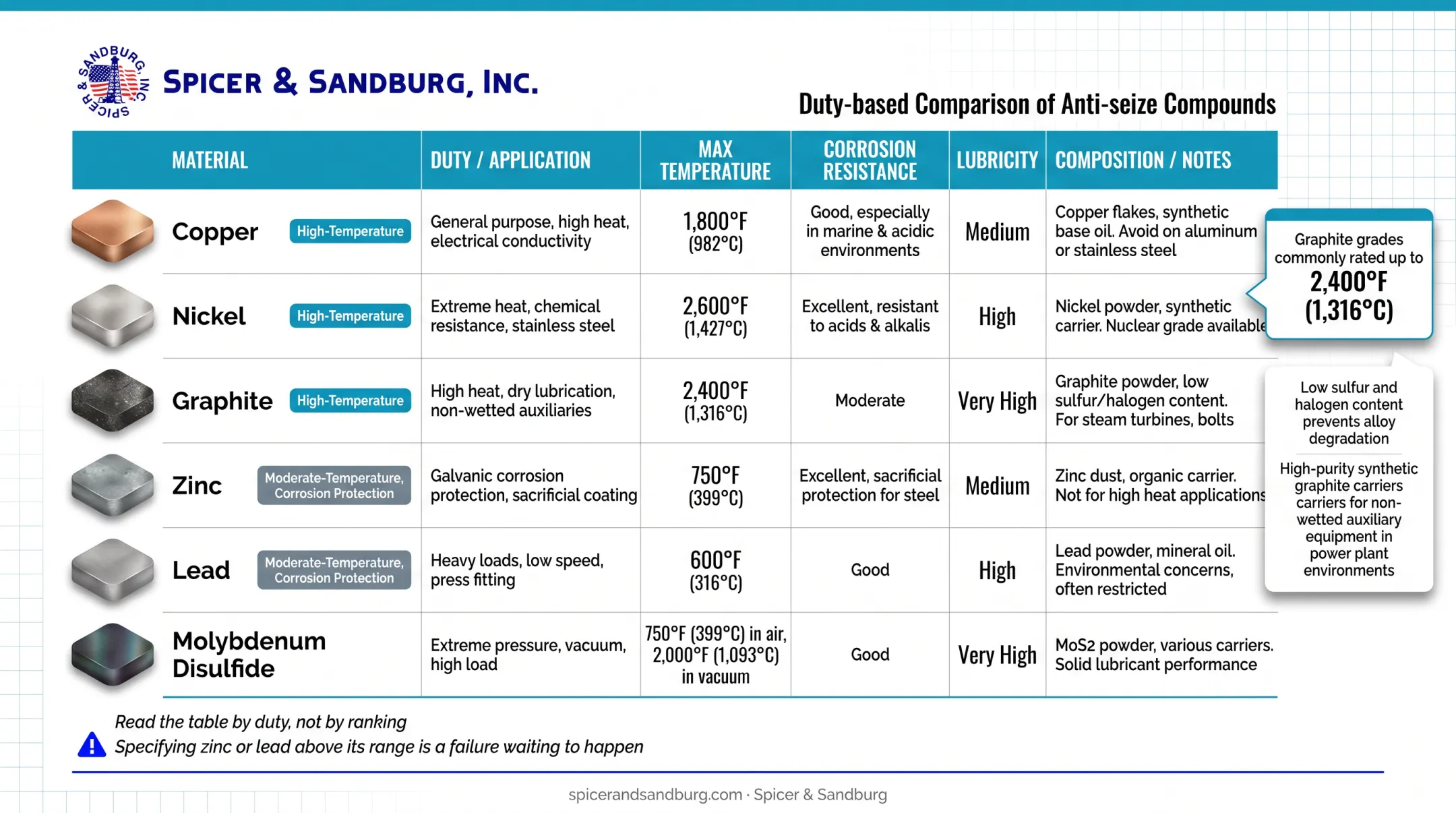

Quick comparison:
| Formulation | Approx. Max Temp | Best For | Watch Out For |
|---|---|---|---|
| Copper | 1,800°F | Carbon steel, iron, general industrial | Copper contamination on sensitive alloys |
| Nickel | Up to 2,400°F | Stainless, titanium, superalloys | Product-specific rating varies |
| Graphite/synthetic | Up to 2,400°F | Nuclear, turbines, extreme-pressure joints | Sulfur/chlorine content specs |
| Zinc | Up to 750°F | Galvanized and steel fasteners, weather exposure | Moderate temperature only — zinc melts at 787°F |
| Lead | Up to 500°F | Soft metals, oilfield thread compounds | Moderate temperature only; lead restrictions apply |
Read the table by duty, not by ranking. Copper, nickel, and graphite are the true high-temperature formulations. Zinc and lead are moderate-temperature materials chosen for corrosion protection and makeup lubricity — specifying either one above its range is a failure waiting to happen.
Critical Applications in Oil & Gas, Drilling, and Industrial Operations
High-temp anti-seize earns its keep in some of the harshest thermal environments in industry.
Drilling operations put constant stress on drill pipe connections, tool joints, and drill collars. Friction heat from makeup and breakout, combined with downhole temperatures, creates exactly the conditions where standard lubricants fail and galling takes hold.
Completion and production work relies on it for wellhead connections, flanges, and valves. That matters most in high-pressure/high-temperature (HPHT) wells and steam injection environments, where thermal cycling is constant and connections still need to come apart cleanly for maintenance.
Industrial and manufacturing settings lean on high-temp anti-seize for:
- Furnace and kiln component fasteners
- High-temperature bearing housings
- Heavy machinery under sustained thermal load
- Compressors and engines running in high-ambient-heat conditions
The cost of getting this wrong is well documented. Thread failure rates have been recorded as high as 25% on stainless steel threaded connections tightened to 32,000 or 62,000 lb-ft. Those failures could take a drilling section out of service for up to a week.
After switching to a high-purity anti-seize compound, documented field results showed a reduction in thread-related failures of more than 50%. On a rig, that gap is the difference between staying on schedule and waiting on parts.
Matching the compound to the job still takes the right product knowledge. Spicer & Sandburg works with drilling, completion, production, and industrial teams to specify anti-seize by operating phase, temperature range, and connection type—so procurement is not left comparing formulations alone.

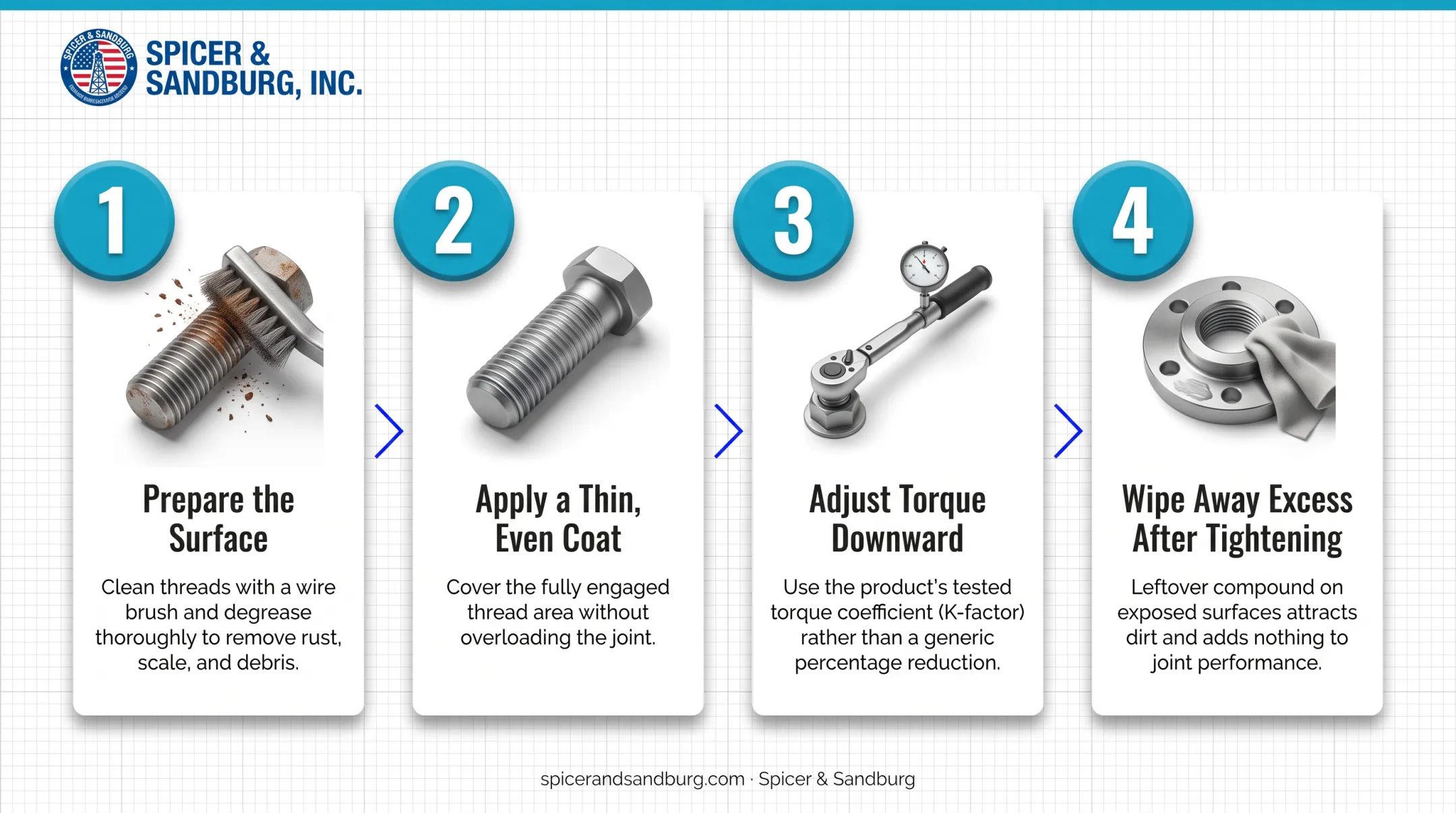

Best Practices for Applying High-Temp Anti-Seize
Even the right formulation fails if it's applied poorly. A few fundamentals make the difference between a joint that breaks out cleanly years later and one that galls on the first cycle.
Prepare the surface. Clean threads with a wire brush and degrease thoroughly to remove rust, scale, and debris. Anti-seize applied over contamination just traps the problem underneath.
Apply a thin, even coat. Cover the fully engaged thread area, but don't overload the joint. A thick glob doesn't improve protection and can interfere with proper thread engagement.
Adjust torque downward. Anti-seize reduces friction, so the same torque spec used on dry threads can generate excessive clamping force. Use the product's tested torque coefficient (K-factor) rather than a generic percentage reduction. The right adjustment depends on fastener geometry and the specific compound.
Wipe away excess after tightening. Leftover compound on exposed surfaces attracts dirt and adds nothing to joint performance.
Choosing the Right High-Temp Anti-Seize Supplier
Price shouldn't be the deciding factor when a failed connection can shut down a rig or a production line for days. What matters more is whether the manufacturer behind the product has decades of proven performance in exactly the conditions you're operating in.
Look for suppliers with:
- Long-standing manufacturer relationships, not just a catalog of interchangeable brands
- Technical support that can match formulation to your specific base metal and temperature range
- A track record across drilling, completion, production, and industrial applications
Spicer & Sandburg is an industrial supply partner for oil & gas and industrial operations across the country, built on vetted relationships with established manufacturers.
That network includes BESTOLIFE, a thread-compound maker with more than 80 years in the petroleum industry. Its formulations seal, lubricate, and protect pipe threads under demanding oilfield conditions.
Getting the formulation right (base metal match, temperature range, and operating environment) isn't something to guess at. Consult the Spicer & Sandburg team before your next order to make sure the compound you're specifying actually fits the job.
Frequently Asked Questions
What is the best anti-seize for high temperature?
Nickel-based anti-seize typically offers the highest temperature tolerance, with products rated up to 2,400°F. It's the preferred choice for stainless steel and superalloys. Copper grades, rated to roughly 1,800°F, fit general industrial fasteners, and graphite grades suit extreme-pressure and high-purity service. Zinc and lead grades are moderate-temperature options, chosen for corrosion protection and makeup lubricity rather than peak heat.
What is a high temperature anti-seize compound?
It's a lubricant containing solid metallic or graphite particles suspended in a carrier fluid. The carrier lubricates during assembly, and the solid particles remain behind to protect threaded fasteners from galling and seizing at extreme temperatures.
When should anti-seize not be used?
Skip anti-seize on dynamic parts like bearings, on metal pairs the product data sheet doesn't approve, and anywhere you need a pressure seal rather than thread lubrication alone.
Can you use copper anti-seize on stainless steel?
Use nickel-based anti-seize on stainless steel, titanium, and nickel alloys when copper contamination must be avoided. Confirm compatibility on the product’s technical data sheet before applying copper grades.
How much should torque be reduced when using anti-seize?
Anti-seize lowers friction, so the same torque reading produces higher clamp load than a dry fastener. Reduce torque versus dry specs and use the manufacturer’s K-factor—not a blanket percentage.
How long does high-temp anti-seize last in storage?
Many anti-seize products carry a minimum shelf life of around five years from manufacture when stored sealed at moderate temperatures. Some oil separation over time is normal and can simply be remixed before use.
