For US oil and gas operations, drilling rigs, hydraulic systems, and pipeline networks, that simplicity matters. Reliable pressure readings catch abnormal conditions before they turn into safety incidents or expensive downtime. A wellhead running hot, a pump losing pressure, a blocked line — mechanical gauges flag these issues in real time, at the point of measurement, without depending on power or electronics.
This article breaks down the four main mechanical gauge types — Bourdon tube, diaphragm, bellows, and capsule — how each works, where they perform best, and how to choose the right one for your application.
TL;DR
- Mechanical gauges turn fluid pressure into a pointer reading via an elastic element—no electrical power needed
- Bourdon tubes cover most medium- to high-pressure work; diaphragm, bellows, and capsule designs suit lower pressures and corrosive media
- Gauge selection depends on pressure range, media, temperature, vibration, accuracy, and connection type
- Don't confuse the sensing element (Bourdon, diaphragm) with the pressure reference (gauge, absolute, differential)
What Are Mechanical Pressure Gauges and Why Are They Important?
A mechanical pressure gauge is a self-contained instrument. Process pressure deforms an elastic sensing element inside the gauge, and that deformation drives a pointer across a calibrated dial.

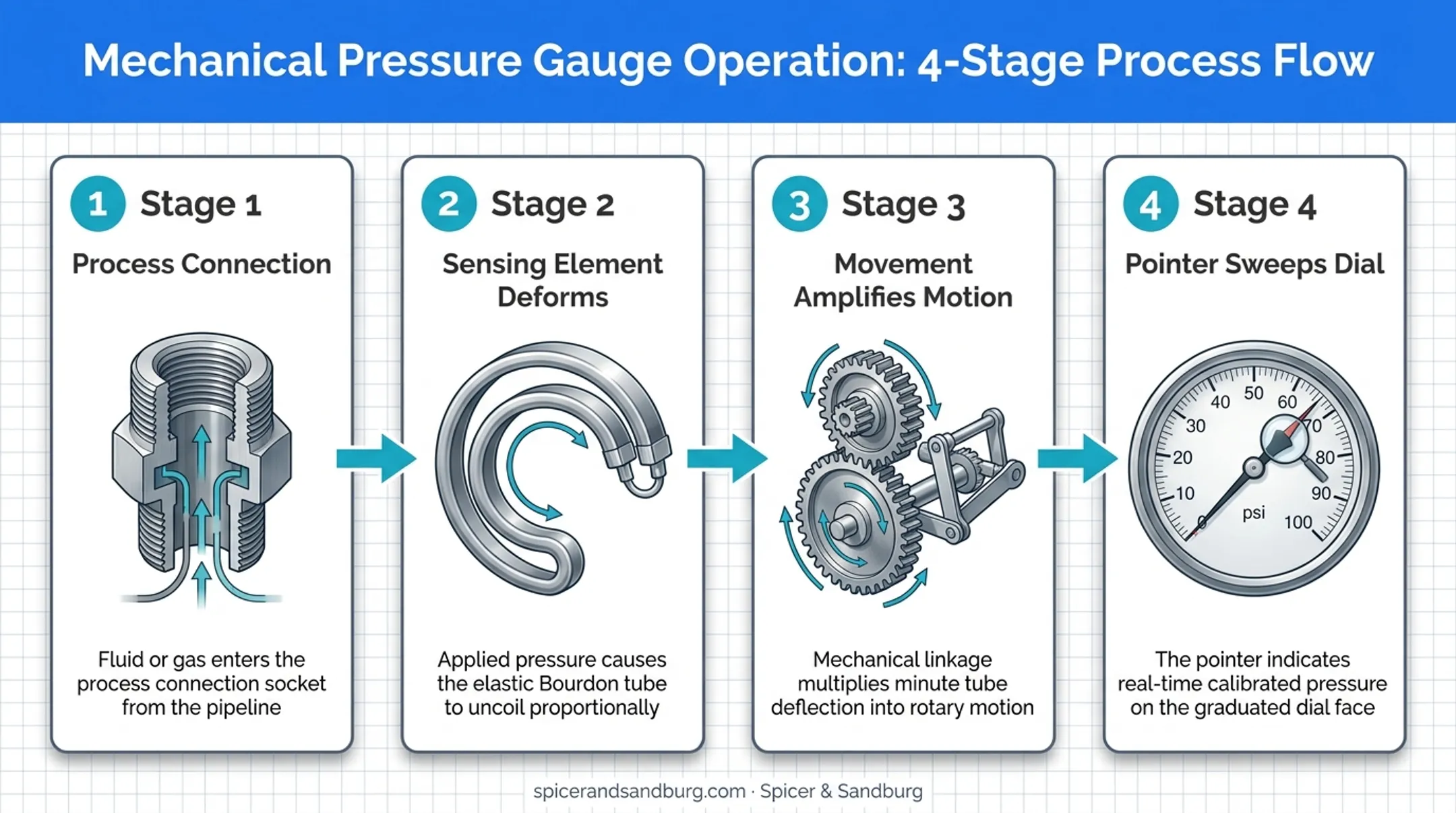

The basic operating sequence:
- The process connection admits pressure into the gauge.
- The sensing element (Bourdon tube, diaphragm, bellows, or capsule) responds by flexing or deforming.
- A movement (gears, links, or a mechanical linkage) amplifies and transfers that motion.
- The pointer sweeps across the dial, giving you a direct reading.
You'll find these gauges across industrial operations: wellheads, pumps, compressors, hydraulic equipment, pipelines, pressure vessels, process skids, pneumatic systems, and manufacturing machinery. PIC Gauges' industrial pressure instruments, for example, are built specifically for upstream drilling, midstream pipeline monitoring, and downstream refining environments.
A reading that drifts outside the normal range is an early warning—leak, blocked line, failing pump, pressure spike, or a process outside its safe envelope—before the failure gets expensive.
Three Separate Ways to Classify Gauges
It's easy to conflate these, so keep them distinct:
- Sensing element: Bourdon tube, diaphragm, bellows, or capsule
- Pressure reference: gauge, absolute, differential, or compound pressure
- Display/output: typically an analog dial for mechanical gauges, though some designs pair a mechanical element with electronic output
Types of Mechanical Pressure Gauges
No single design suits every pressure range, media, or environment. The sensing element you choose determines sensitivity, pressure capability, and where the gauge will actually hold up.
Bourdon Tube Pressure Gauges

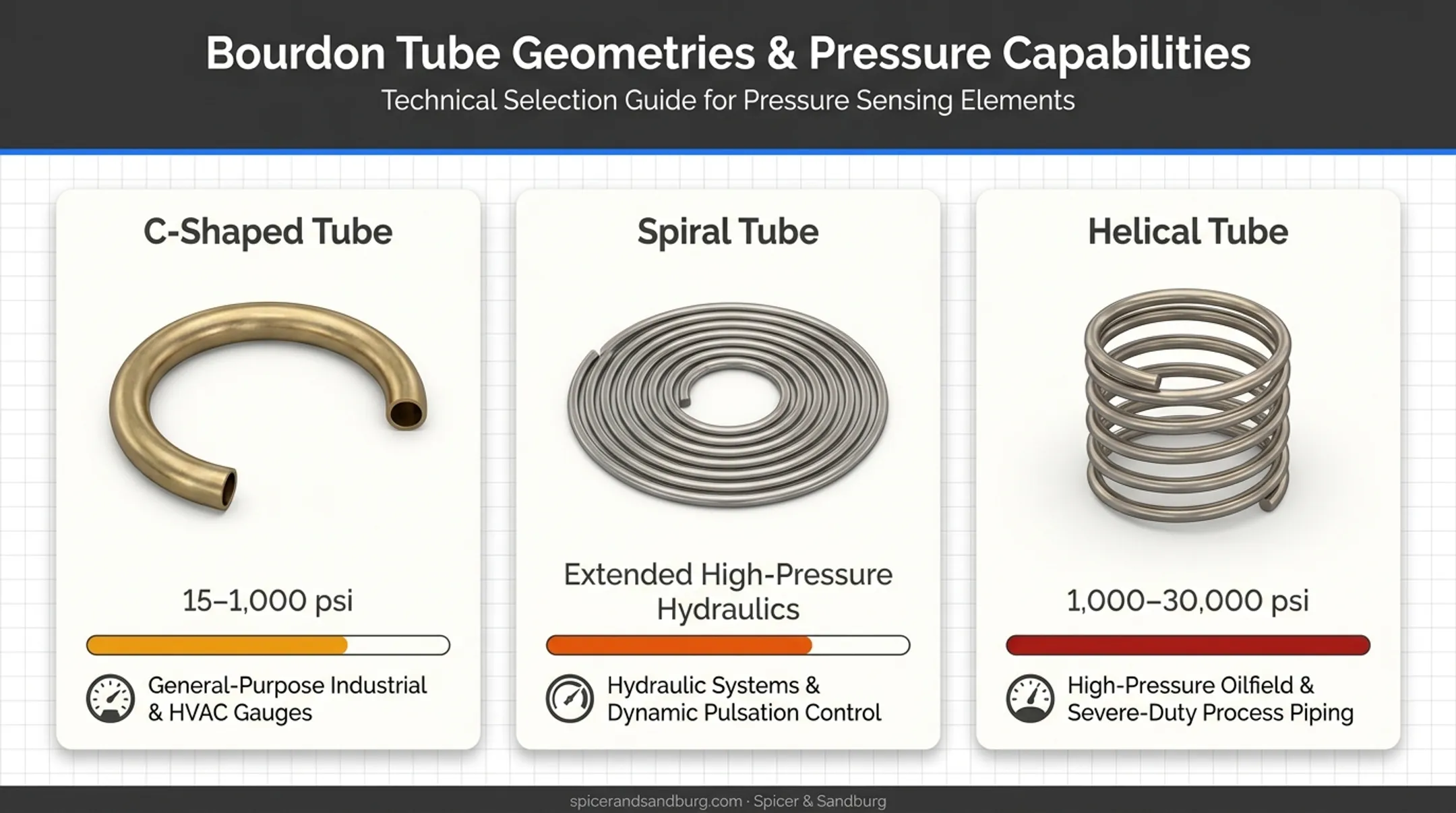

A Bourdon tube is a curved, flattened elastic tube that straightens or changes shape as internal pressure rises. That motion transfers through a linkage and gear movement to the pointer. Tube geometry drives capability:
- C-shaped tubes typically handle 15 to 1,000 psi and suit general-purpose HVAC, water-supply, and low-to-moderate pressure work (Ashcroft)
- Helical tubes are built for higher pressure, generally 1,000 to 30,000 psi
- Spiral tubes extend even further, often used in high-pressure hydraulics, process industries, and research settings One WIKA stainless-steel Bourdon gauge spans 15 psi to 15,000 psi, with applications across chemical plants, power generation, mining, and offshore operations. Strengths: broad usability, simple construction, ruggedness. Trade-offs: sensitivity to vibration, pulsation, overpressure, corrosion, and mechanical wear over time. Liquid-filled cases, restrictors, and snubbers exist as accessories for exactly these conditions. A snubber suppresses pressure pulses and peaks, one of the most common causes of premature gauge failure. For hydraulic systems and compressors running with constant pulsation, skipping the snubber often means replacing the gauge sooner than you'd like.
Diaphragm Pressure Gauges
A diaphragm gauge uses a flexible membrane that deflects with pressure. Unlike a Bourdon tube's narrow internal passage, a diaphragm can isolate the sensing mechanism from the process media entirely. That isolation makes diaphragm gauges the go-to choice for:
- Low-pressure measurement
- Differential pressure applications
- Viscous or contaminated media
- Corrosive fluids
- Applications where a narrow tube would clog or crystallize Material compatibility matters here. Ashcroft's diaphragm gauge line offers 316L stainless steel, PTFE lining, Inconel 718, and Hastelloy C-276 depending on the process chemistry. Diaphragm seals, protective coatings, and sanitary connections extend the design into chemical processing and wastewater applications where a bare Bourdon tube simply wouldn't survive. PIC Gauges' industrial pressure instruments integrate with diaphragm seals for exactly this reason — protecting the gauge from corrosive or viscous media while still delivering an accurate reading. Trade-off: you gain isolation and sensitivity at lower pressures, but diaphragm designs have their own limits on overpressure tolerance, mechanical fatigue over repeated cycles, and temperature sensitivity.

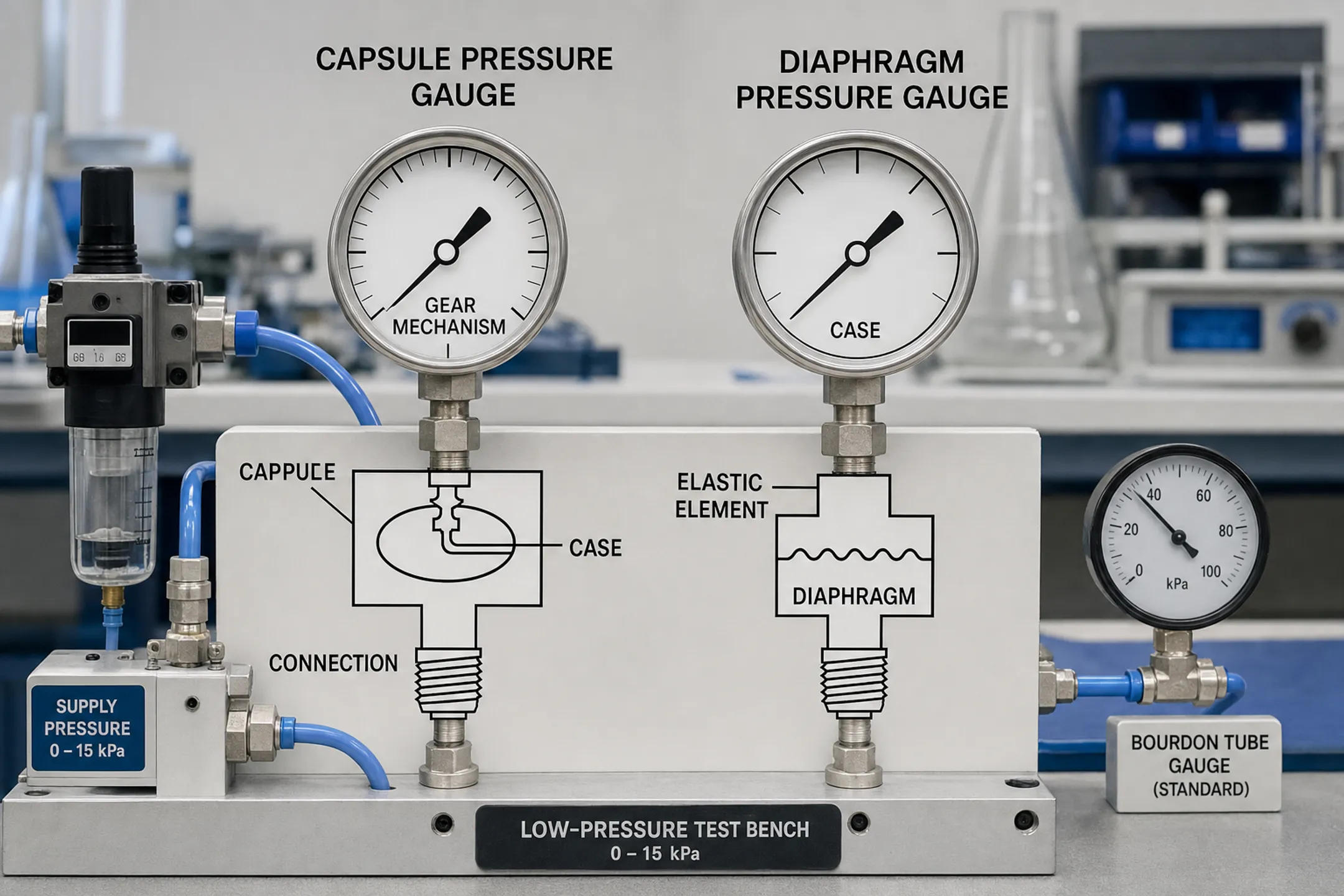

Bellows and Capsule Pressure Gauges
Bellows gauges use a corrugated, expandable metal element. Capsule gauges use two corrugated diaphragms sealed together. Both produce mechanical movement as pressure changes, and both excel at low-pressure work where a Bourdon tube would barely move. Best-fit applications:
- Low-pressure gas service
- Pneumatic systems and ventilation
- Laboratory equipment
- Leak testing
- Differential pressure measurement
- Sensitive process monitoring Ashcroft's bellows gauge line covers ranges as low as 10 inH2O to 10 psi, including vacuum and compound service — a range where Bourdon tubes simply aren't practical. Trade-off: high sensitivity to small pressure changes comes at the cost of high-pressure capability. Neither design handles aggressive media, severe overpressure, or intense cycling well unless specifically engineered for it. A capsule gauge is a mechanical sensing-element design. It is not one of the electronic pressure-sensor technologies (piezoresistive or capacitive) sometimes lumped into broader sensor classifications.
Keep Related Instruments Separate
A few terms get confused often enough to warrant a quick distinction:
- Manometers and piezometers measure pressure using liquid-column height or hydrostatic principles — not an elastic mechanical element
- Digital gauges, transducers, and transmitters use electronic sensing and output, distinct from a mechanical dial-and-pointer design
- Gauge, absolute, differential, and compound pressure describe the reference point for the measurement, not a mechanical sensing element. Compound pressure, for instance, is a single dial that reads both positive pressure and vacuum.

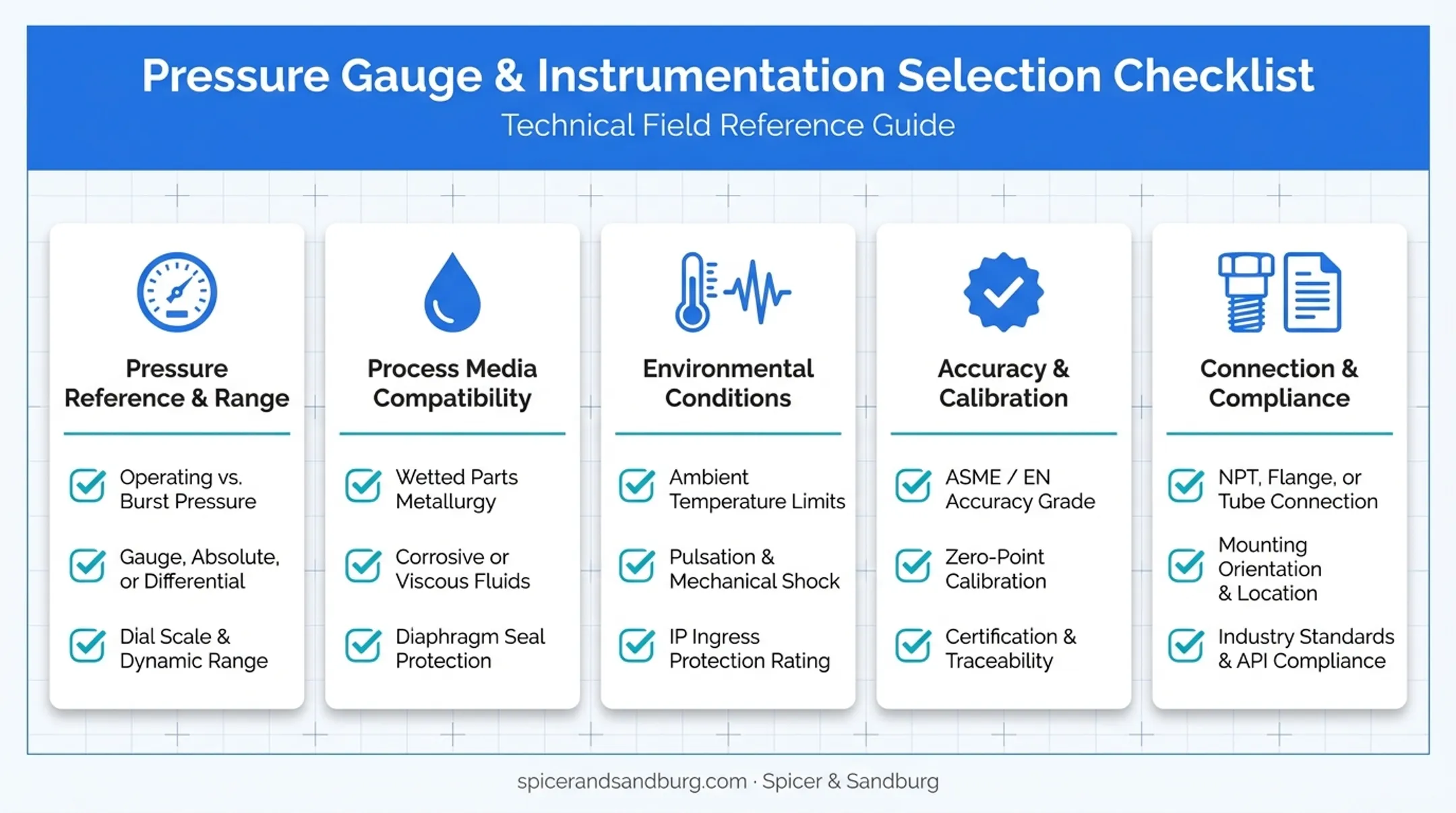

How to Choose the Right Type of Mechanical Pressure Gauge
The right gauge is dictated by process conditions and your measurement objective — not by whichever design is most familiar or most advanced.
Start with the pressure measurement requirement:
- Determine whether you need gauge, absolute, differential, vacuum, or compound pressure
- Identify normal operating pressure, expected fluctuations, and any transient or overpressure events
- Select a range that keeps normal operation within the manufacturer-recommended portion of the scale (confirm against current ASME B40.100 guidance)
Match the sensing element to the process media. Different media need different wetted materials—and sometimes a different sensing element entirely:
- Liquids and gases
- Steam
- Corrosive chemicals
- Abrasive, viscous, or contaminated fluids
Evaluate the surrounding environment:
- Process and ambient temperature swings
- Humidity, dust, vibration, pulsation, and shock
- Outdoor exposure or hazardous-area classification
- Whether a liquid-filled case, snubber, diaphragm seal, or remote mount is warranted
Confirm Accuracy, Readability, and Calibration Needs
Match accuracy class to purpose: basic indication needs less precision than control support, testing, or safety-critical monitoring.
- Choose dial size, scale units, and pointer style based on viewing distance and installation height
- Verify calibration, traceability, and recalibration schedules against your facility's procedures and applicable standards
Check the process connection. Thread type, connection material, mount position, and maintenance access all matter. A gauge rated for the pressure but impossible to service is still the wrong fit.
Review compliance before purchase. ASME guidance, hazardous-location rules, and company specs vary by application—what works in one oil and gas operation may not transfer to another.
What to Check Before Finalizing a Gauge
Before you order:
- Verify the complete datasheet against your actual process conditions — pressure reference, range, media, temperature, materials, connection, and accessories
- Don't choose on price, familiarity, or max pressure rating alone—vibration, pulsation, or media mismatch can still cause failure
- Plan installation, inspection, and replacement procedures before the gauge arrives
Once those specs are locked in, sourcing gets simpler. PIC Gauges' industrial line offers heavy-duty one-piece case-to-socket construction, plus needle valves, diaphragm seals, and thermowells that help extend instrument life in upstream, midstream, and downstream service.
Spicer & Sandburg can help match those requirements to the right gauge and confirm manufacturer availability.
Conclusion
Different mechanical sensing elements exist because no single design handles every pressure range, media type, and environment equally well.
- Bourdon tubes cover broad general-purpose service
- Diaphragms handle isolation needs and challenging or lower-pressure media
- Bellows and capsule designs handle sensitive, low-pressure measurement
Match the gauge to your pressure reference, operating range, process media, environment, and maintenance needs. That choice is what keeps operations running safely and reliably.
Frequently Asked Questions
What is the most accurate pressure gauge?
Accuracy depends on application, pressure range, accuracy class, calibration, and installation. No single gauge design is universally most accurate. A well-calibrated gauge matched to its process will outperform a higher-spec gauge installed incorrectly.
What is the most common type of pressure gauge?
The Bourdon tube design is the most widely used mechanical gauge type. Its broad pressure capability, from low to very high ranges, combined with rugged, simple construction, makes it the default choice across most industrial applications.
What are the different types of mechanical pressure gauges?
The four main types are Bourdon tube, diaphragm, bellows, and capsule gauges. Bourdon tubes suit general-purpose medium-to-high pressure work, diaphragms handle corrosive or contaminated media, and bellows/capsule designs address sensitive low-pressure measurement.
What are the 7 types of pressure sensors?
Common electronic pressure sensor types include strain-gauge, piezoresistive, capacitive, piezoelectric, optical, resonant, and variable-reluctance designs. These are electronic technologies, distinct from the mechanical gauge types covered in this article.
What is a mechanical pressure gauge?
A mechanical pressure gauge uses a Bourdon tube, diaphragm, bellows, or capsule to convert pressure-induced movement into an analog dial reading. It needs no electricity, battery, or external signal to operate.
