Getting this right matters more than it might seem. A 2022 SPE paper found that nonproductive time can account for as much as 30% of well-construction CAPEX — and connection mismatches are exactly the kind of avoidable error that drives NPT up. Note: throughout this piece, "crossover joint" refers to the oilfield crossover sub (also called an X-over), not a construction cross joint.
TL;DR
- Crossover joint: adapts between different tubular sizes, thread types, or connection configurations
- Pup joint: adjusts the length or spacing of a string without touching the connection interface
- Selection depends on assembly design, load requirements, and service environment — not brand preference
- 2024 SPE/IADC research ties uncontrolled connection torque to avoidable drillstring failures
Crossover Joint vs Pup Joint: Quick Comparison
Both are short, threaded tubular components used across drilling, completion, and production strings. A crossover joint is often called a "crossover sub" or "X-over" in the field (same part, different name).
Cost and sourcing
Crossover joint pricing depends on connection complexity, size transition, material grade, machining tolerances, certification, and order quantity. API, VAM, and other premium connections are widely available, but exact size and thread combinations are typically quote-dependent.
Pup joint pricing hinges on length, tubular type (tubing, casing, or drill pipe), grade, connection style, and finishing , not length alone. A 12-foot pup with a premium connection can cost more than a longer joint with a standard thread.
Primary function
- Crossover joint: Joins components with different sizes, thread types, or connection designs
- Pup joint: Fine-tunes the overall length or spacing of a casing, tubing, drill pipe, or completion string
Length and physical design
A crossover joint is a short, one-piece tubular body with machined threaded ends. Those ends often differ from each other in size or thread type.
A pup joint is also short, but it is built to slot into a specific string design. Available lengths vary by manufacturer and application, so fixed ranges rarely apply across the board.
Connection compatibility
This is the core distinction:

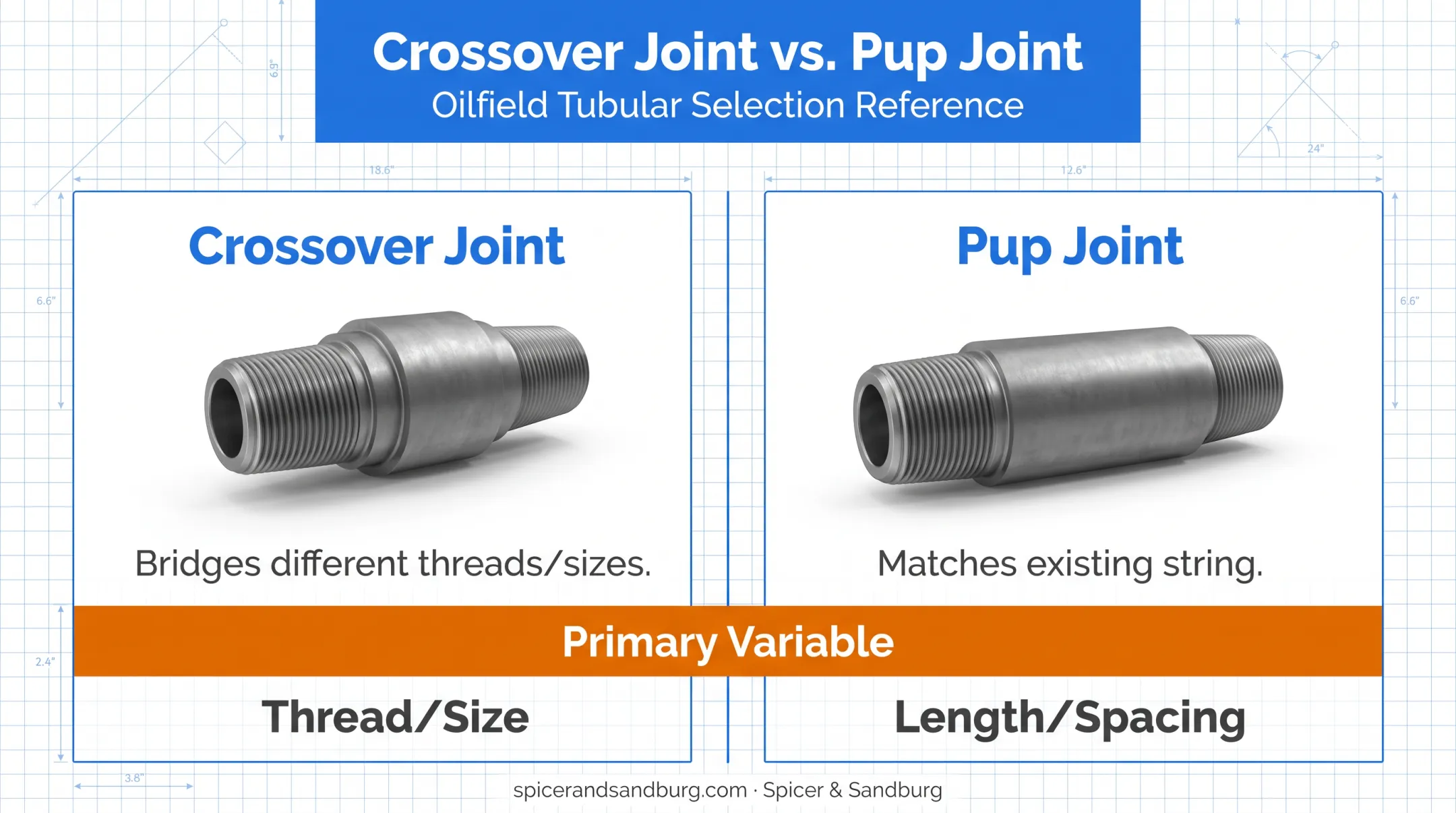

| Factor | Crossover Joint | Pup Joint |
|---|---|---|
| Connection purpose | Bridges different threads/sizes | Matches the existing string |
| End-to-end match | Ends often differ | Ends typically match the string design |
| Primary variable | Thread/size compatibility | Length/spacing |
Durability and service performance
Both components' performance ties back to material grade, heat treatment, thread quality, torque limits, axial and bending loads, pressure rating, and corrosion or sour-service resistance. A pup joint is not inherently weaker just because it is shorter . Its strength depends on the same engineering factors as any other joint in the string.
Typical application
- Crossover joint: Placed at transitions such as drill pipe to drill collars, casing to tubing, or completion-string elements with mismatched connections
- Pup joint: Placed where the string needs spacing out, landing adjustment, or precise depth positioning
What Is a Crossover Joint?
A crossover joint (also called a crossover sub or X-over) is a threaded tubular component used to connect two oilfield components that differ in size, thread type, connection design, or another interface requirement. Physically, it's a compact tubular body with machined threaded connections on each end, sized and configured according to whatever it's bridging.
Manufacturer documentation groups crossover configurations into three broad end arrangements:
- Pin × pin — two male ends
- Box × box — two female ends
- Box × pin — one of each

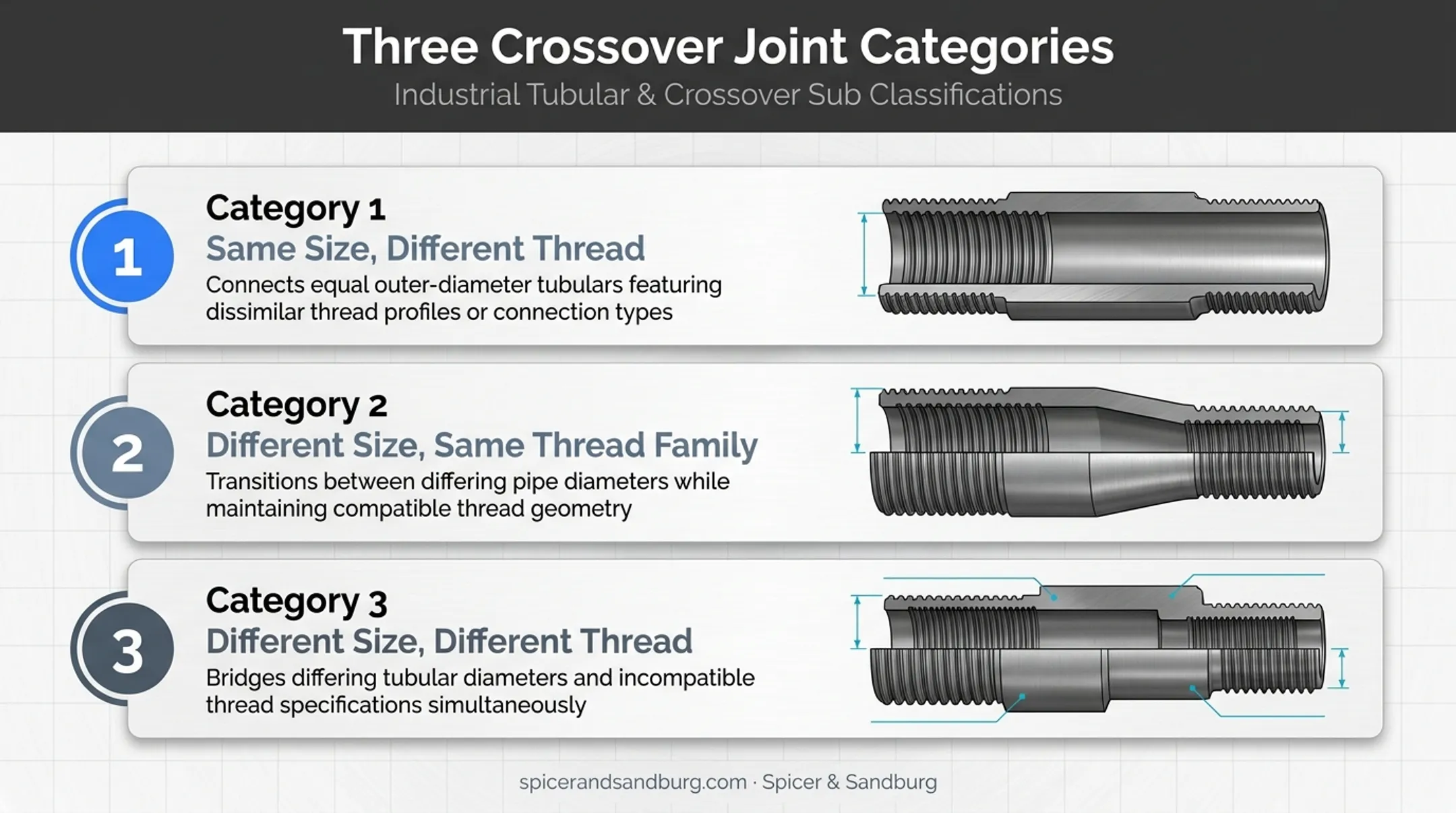

Quality crossovers are typically manufactured to API 7-1, with both ends meeting API requirements. End arrangement is only half the spec—crossovers also fall into three working categories:
- Same size, different thread — nominal size stays the same, connection family changes
- Different size, same thread family — size changes, thread compatibility holds
- Different size, different thread — both variables change, requiring independent verification of each end
Selection Checklist
Before ordering, confirm:
- Both-end connection details (thread type, pin/box orientation)
- Nominal size and drift/bore requirements
- Material grade and heat treatment
- Pressure and temperature ratings
- Torque and tensile load limits
- Corrosion or sour-service requirements (H2S environments)
- Inspection and traceability documentation
- Applicable API, operator, or project specification
Getting one end right and guessing on the other is a common, expensive mistake.
Use Cases of a Crossover Joint
Crossover joints are used most often in drillstring and bottom hole assembly (BHA) work, where components with different connection sizes need to work together. Common examples include:
- Transitioning between drill pipe and drill collars with mismatched threads
- Connecting a bit to the first BHA component
- Bridging casing, tubing, packers, or valves that use different connection standards
- Supporting fishing, milling, cleanout, and intervention work with mixed thread families
Manufacturer catalogs also describe crossovers as a way to protect higher-value connections — using a sacrificial sub instead of wearing down threads on expensive drill-stem components. That said, not every crossover fits every application; the specific pressure, torque, and dimensional requirements of your assembly always come first.
What Is a Pup Joint?
A pup joint is a shortened tubular section used to adjust the length, spacing, or landing position of an oilfield string. Unlike a crossover, its connections generally match the surrounding string rather than bridging two different systems.
Typical oilfield pup joints from API-certified manufacturers share these characteristics:
- Manufactured under API Spec 5CT (casing and tubing) and API Spec 7 (rotary drill stem elements)
- Built from OCTG-grade steel
- Available with EUE (External Upset End) and other API standard connections
- Produced under API-approved quality programs, often with API Monogram licensing
Types of Pup Joints
- Tubing pup joints: Seamless, API-grade, typically EUE, NUE, or Buttress connections
- Casing pup joints: Larger OD range, often custom lengths with STC, LTC, Buttress, or premium threads
- Drill pipe pup joints: Made from heat-treated alloy bar stock, connections machined to API specs
Size and length always vary by order specification — there's no single universal pup-joint dimension table that applies across manufacturers.
Selection Checklist
- Outside/inside diameter, wall thickness, and length
- Connection type and material grade
- Pressure, temperature, and axial load ratings
- Corrosion or sour-service requirements
- Inspection records and full traceability
- Applicable API specs or operator standards
Use Cases of a Pup Joint
Pup joints solve a different problem than crossovers: getting the string to the right length rather than the right connection.
- Space out tubing or casing when standard joint lengths don't add up to the required assembled dimension
- Position completion components, such as packers or gas-lift mandrels, at a specific measured depth
- Land a string correctly without cutting or modifying a standard-length tubular
Tenaris notes that pup joints' fixed, known lengths also make them useful reference points on correlation logs: the shorter section is easy to spot when confirming string position downhole.
These length-driven cases are separate from a connection mismatch. If threads don't match, a pup joint won't fix that — you need a crossover.
Crossover Joint vs Pup Joint: Which Is Better?
Neither wins outright. The right choice depends on what problem you're solving:
- Connections don't match? Use a crossover.
- Connections match but the string is the wrong length? Use a pup joint.

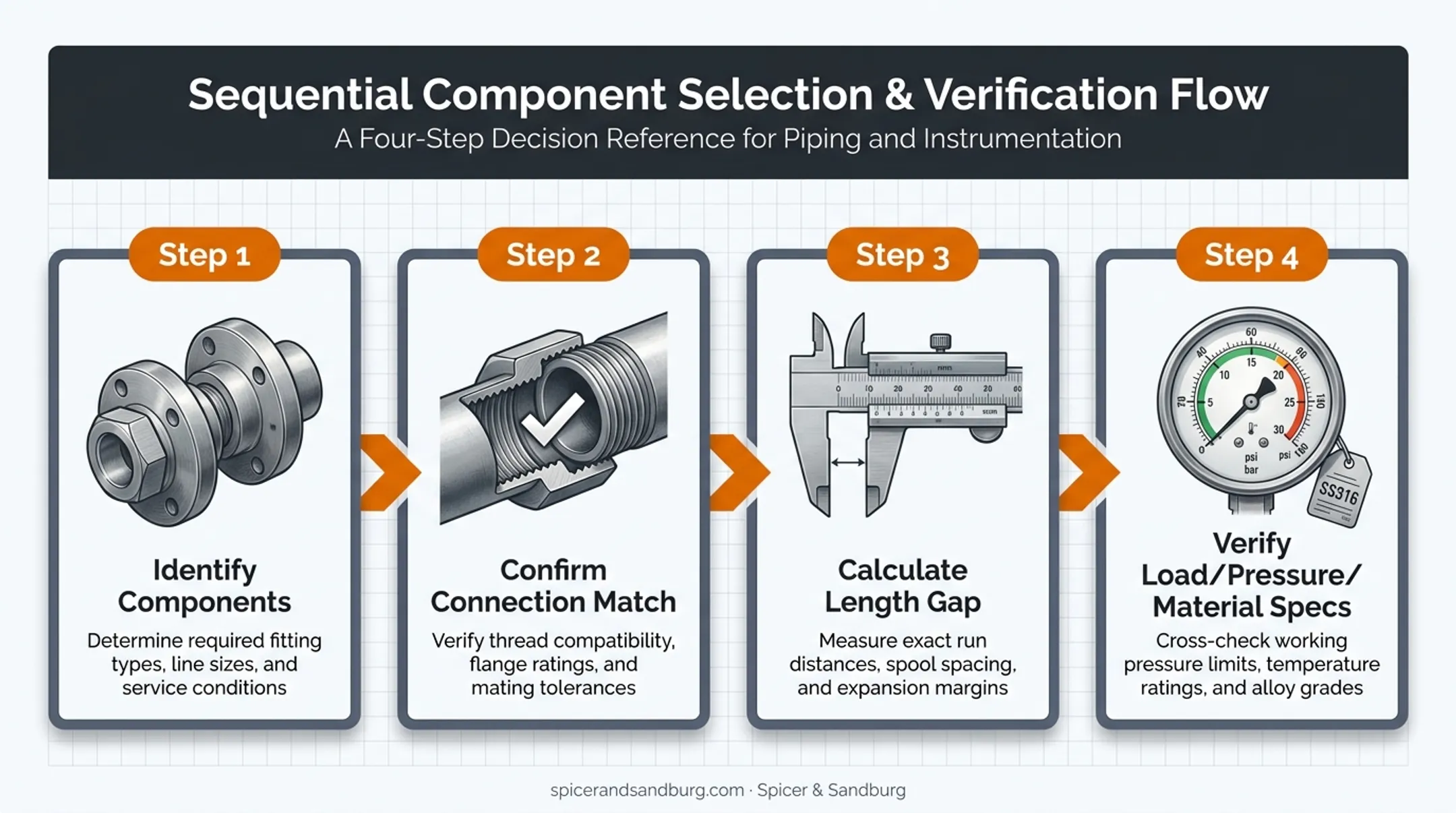

A practical decision sequence:
- Identify the two components being joined and note each connection type
- Confirm whether their connections already match end to end
- Calculate the required string length and any spacing gap to close
- Verify load, pressure, dimensional, material, and service-environment requirements before ordering
Sometimes you need both in one assembly — a transition point that also requires precise spacing. What you should never do is substitute one for the other: a pup joint won't fix a thread mismatch, and a crossover isn't a length-adjustment shortcut.
Once the component type is clear, supplier quality still decides whether it performs on location. Look past the part name and check:
- Inspection and traceability records for each heat and lot
- Lead time against your rig or project schedule
- Total installed cost, not unit price alone
- Operator or project approval requirements before delivery
Real-World Applications and Procurement Examples
Consider a completion job where tubing needs to land a packer at a precise measured depth, but standard joint lengths overshoot the target by several feet.
Rather than special-ordering a custom-length tubing joint, the crew specifies an API Spec 5CT pup joint sized to close the gap. The rest of the string stays standard while hitting the exact landing depth.

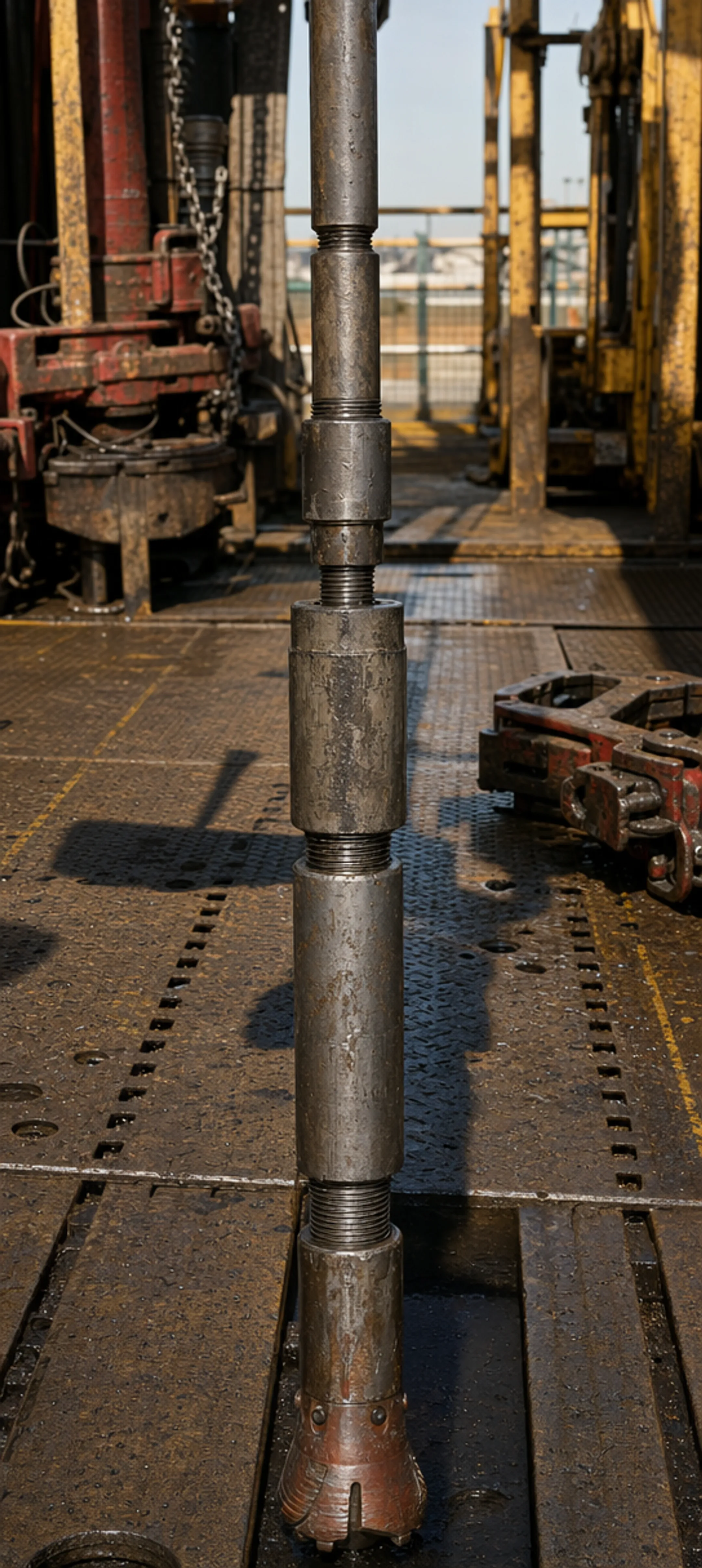

Compare that to a drillstring scenario where a BHA component uses a different thread form than the adjacent drill collar. A crossover sub with the correct pin/box configuration on each end bridges the two, so no BHA redesign is required.
In short, crews reach for each component when:
- Pup joints close measured-depth gaps so packers land without custom-length tubing
- Crossover subs match pin/box thread forms between BHA components and drill collars
For US drilling, completion, production, and industrial teams, Spicer & Sandburg works with manufacturer partners like Crossover, Inc. and Mayco Inc. on API-certified OCTG. That includes pup joints and tubing couplings backed by API Spec 5CT, API Spec 7, and API Monogram certification.
If you're specifying either component for an upcoming job, reach out to our team to confirm current availability, certification, and application fit before you order.
Conclusion
The distinction comes down to one question: is the problem the connection, or is it the length? A crossover joint changes or adapts the connection between tubular components. A pup joint changes the effective length or spacing of the string.
Mixing them up can cause more than a paperwork headache. It can delay a rig or leave a string that won't land where it needs to.
Before ordering either component, verify:
- Dimensions and thread compatibility
- Material and service requirements
- Load and pressure ratings
- Inspection documentation
- Applicable API or project specification
That verification step, more than the component name itself, is what keeps a job on schedule.
Frequently Asked Questions
What is a crossover joint and what does it look like?
A crossover joint, or crossover sub, is a threaded tubular adapter with two connection ends designed to join different sizes or thread types. Its exact appearance depends on the specific size and thread configuration required.
What are the different types of pipe joints?
General pipe-joining methods include threaded, welded, flanged, and compression joints. Oilfield crossover joints and pup joints are specialized tubular components, not interchangeable with general-purpose pipe joints.
What is a pup joint in oil and gas?
A pup joint is a shortened tubular section used to adjust string length or spacing in a casing, tubing, or drill pipe assembly. Tubing, casing, and drill pipe versions are selected based on the specific string design.
What is the difference between a crossover and a pup joint?
A crossover joint adapts between different connection types or sizes, while a pup joint adjusts the overall length or spacing of a string. Choose a crossover for incompatibility issues and a pup joint for length or positioning needs.
When should you use a pup joint instead of a crossover?
Use a pup joint when the connections already match but the string needs a precise length adjustment. Use a crossover when the connection or size transition itself is the actual problem.
